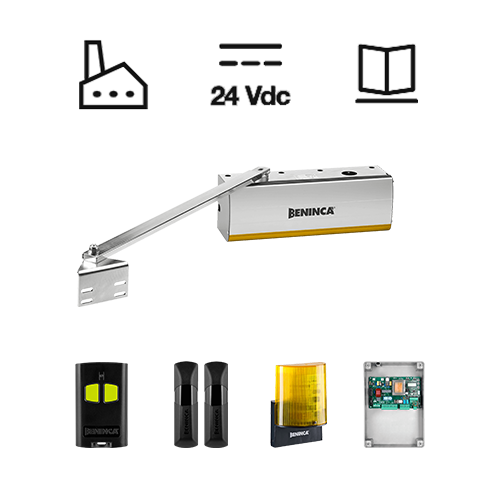

24 Vdc | Intensive operation
24 Vdc operator for intensive use with encoder | Encoder for maximum safety and precision during door movement | Crush protection with force cut-off | Internal metal gears for maximum performance and long service life | Quick and easy installation, with remote release | LED auxiliary light accessory available as an option
| Mains supply | 230 Vac (50-60Hz) |
| Supply voltage motor | 24 Vdc |
| Max. Power consumption | 8 A |
| Torque | 260 Nm |
| ED | Intensive operation |
| Protection class | IP44 |
| Integrated control | Nope |
| Integrated receiver | Nope |
| Encoder | Yes |
| Operating temperature | -20°C /+50°C |
| Lubrication | BOLD |

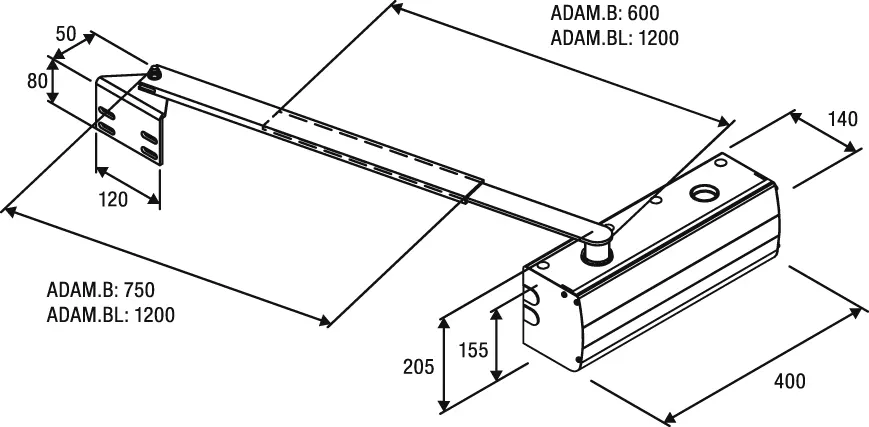

| Max. Wing length | 1,3 m |
| Max. Sash weight | 100 kg |
| Weight | 11.2 kg |
| Quantity per pallet | 27 |

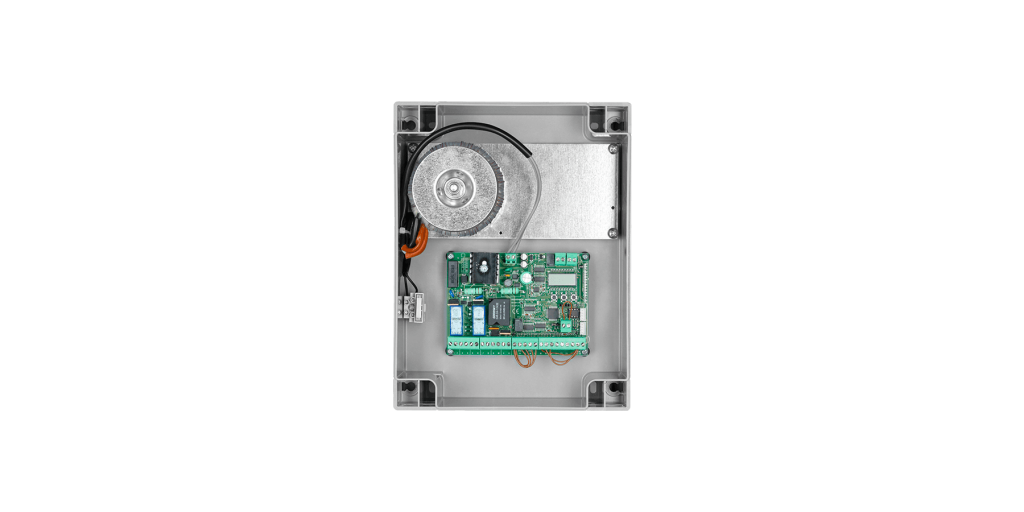

APPLICATION
1 or 2 operators for swing gates, opposing sliding gates and industrial folding gates with a maximum of 2 leaves
SUPPLY OF THE CONTROL UNIT
230 Vac – 50/60 Hz
SUPPLY OF THE MOTOR
24 Vdc / 120 W + 120 W
MAIN FUNCTIONS
Integrated LCD display | Integrated 433.92 MHz radio receiver with 64 codes and 3 radio codings (Advanced Rolling Code, Rolling Code, Fixed Code) | Removable terminal strips | Inputs for limit switches (separately for each motor) | Inputs for opening, closing and pedestrian door | Inputs for photocell activation on opening-closing and only on closing | Input for safety contact strip N.C. or 8K2 | Output for 12 Vdc electric lock | Output for “gate open” or photocell test indicator light, for second radio channel and photocell test | Output for flashing light connection | Autoset operating parameters | Electronic torque adjustment (separate for each motor) | Anti-crushing protection with force cut-off | Electronic slowdowns on opening and closing (separate for each motor) | Possibility of parameter configuration and remote control management via the Advantouch system | Number of movements | Access password for programming | Maintenance message

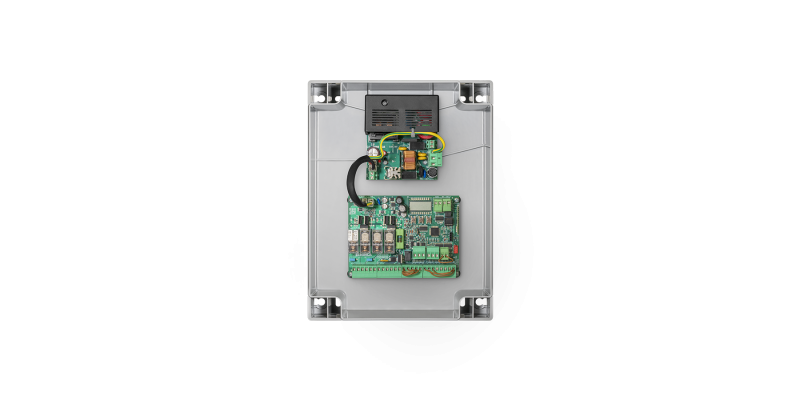

APPLICATION
1 or 2 operators for swing gates, opposing sliding gates and industrial folding gates with a maximum of 2 leaves
SUPPLY OF THE CONTROL UNIT
115 or 230 Vac (selectable) 50/60Hz
SUPPLY OF THE MOTOR
24 Vdc / 240 W + 240 W
MAIN FUNCTIONS
Integrated LCD display | Integrated 433.92 MHz radio receiver 64 codes and 3 codings (Advanced Rolling Code, Rolling Code, Fixed Code) | Removable terminal blocks | Separate limit switch inputs for each motor | Inputs for open, close, step and pedestrian | Separate inputs for photocell for open-close and close only | Stop input | Input for N.C. or 8K2 safety contact strip | Input for hydraulic motor encoder 24 Vdc | Output for 12 Vdc electric lock | 2 outputs configurable as warning light for open door, second radio channel, auxiliary light, zone light or light barrier test, flashing light, alarm for open door, Alarm NC inputs | Output for connection of flashing light | Autoset of operating parameters | Separate electronic torque setting for each motor | Separate electronic speed control for each motor | Crush protection with force cut-off and encoder management | Opening and closing slowdowns separately for each motor | Prepared for connection to KNX via X.BE (optional) | Prepared for control, configuration, diagnostics and firmware update via the BeUP app, via the PRO.UP accessory | Possibility of parameter configuration and management of hand-held transmitters with the Advantouch system | Number of maneuvers | Access password for programming | Maintenance message | Integrated battery charger
