24 Vdc | Intensive operation
24 Vdc self-locking electromechanical operator for intensive use | The TRUST24 control unit ensures a stand-by power consumption of < 0.8 W | Crush protection with force cut-off | Operation also possible with battery | Reliable operation and smooth running | Easy installation thanks to 2 adjustable mechanical stops for opening and closing | Rolled screw with spherical cross-section (Ø 20 mm) | Unlocking from above with easy access

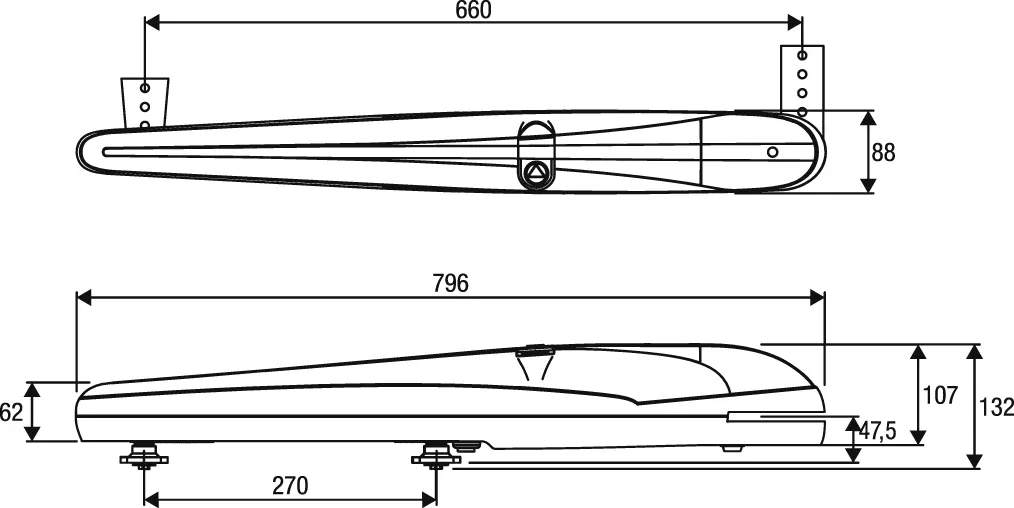

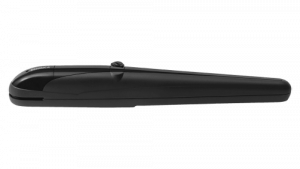

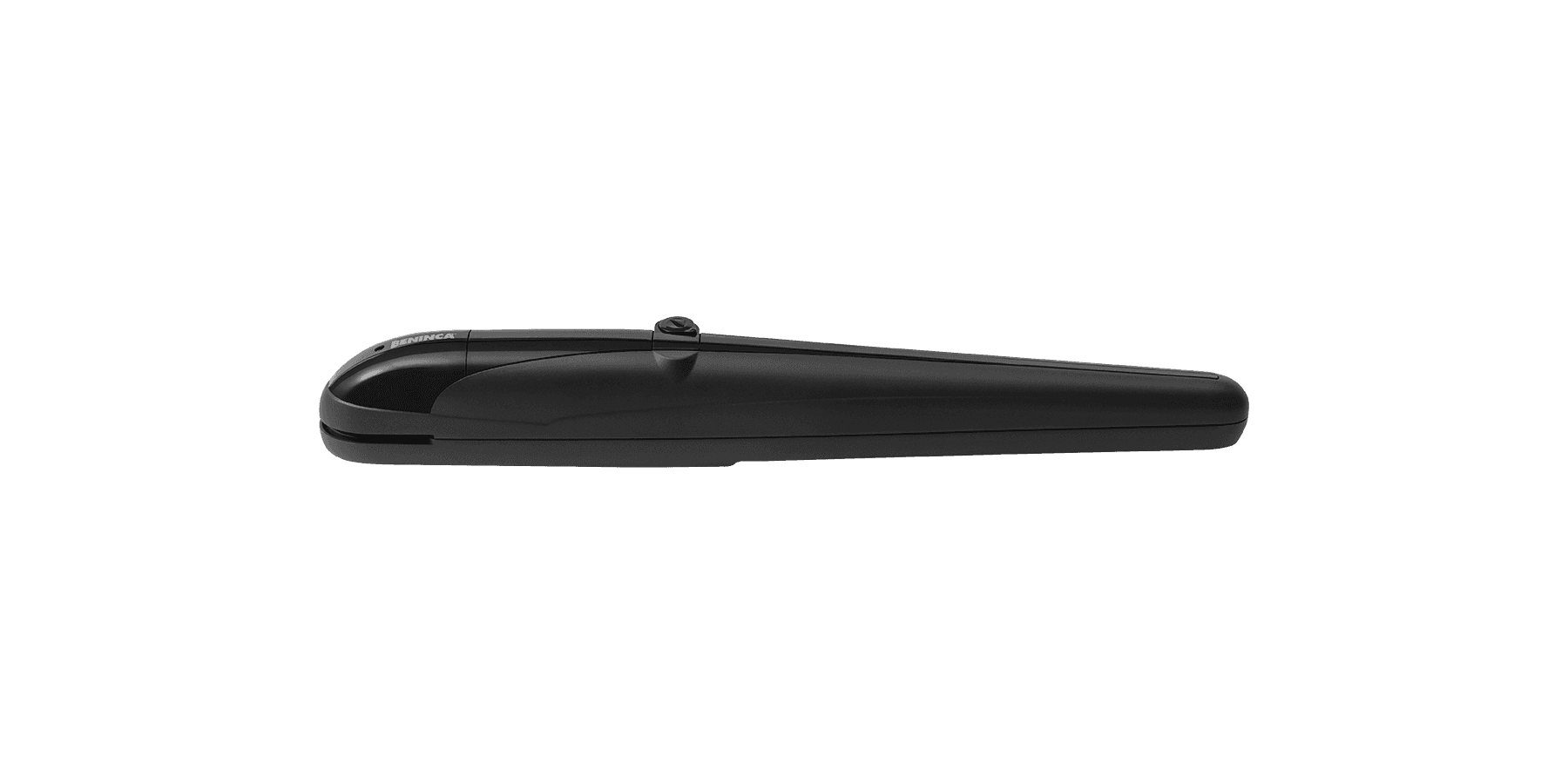

2x BOB2124.DK
24 Vdc self-locking electromechanical drive for intensive use
1X HEADY
230 Vac control unit with integrated receiver
1X PUPILLA.T
Pair of photocells can be aligned in three positions, power supply 14÷30 Vac / 12÷30 Vdc | Close mounting of 2 pairs is possible without synchronization
1X LAMPY
Flashing light 12 ÷ 255 Vac / 14 ÷ 255 Vdc with integrated antenna
1X TO.GO2VA
Hand-held transmitter with 2 channels, 433.92 MHz, with Advanced Rolling Code and Rolling Code
| Supply voltage motor | 24 Vdc |
| Max. Power consumption | 5,5 A |
| Max. Thrust | 1500 N |
| Opening hours | 12″ |
| Standard hub | 270 mm |
| Max. Stroke | 325 mm |
| ED | Intensive operation |
| Protection class | IP44 |
| Integrated control | Nope |
| Encoder | Nope |
| Operating temperature | -20°C /+50°C |
| Lubrication | BOLD |
| Max. Wing length | 2,1 m |
| Weight | 6.4 kg |
| Quantity per pallet | 50 |
| Weight of the set | 14.7 kg |
| Number of sets per pallet | 18 |
APPLICATION
1 or 2 operators for swing gates, opposing sliding gates and industrial folding gates with a maximum of 2 leaves
SUPPLY OF THE CONTROL UNIT
230 Vac – 50/60 Hz
SUPPLY OF THE MOTOR
24 Vdc / 120 W + 120 W
MAIN FUNCTIONS
Integrated LCD display | Integrated 433.92 MHz radio receiver with 64 codes and 3 radio codings (Advanced Rolling Code, Rolling Code, Fixed Code) | Removable terminal strips | Inputs for limit switches (separately for each motor) | Inputs for opening, closing and pedestrian door | Inputs for photocell activation on opening-closing and only on closing | Input for safety contact strip N.C. or 8K2 | Output for 12 Vdc electric lock | Output for “gate open” or photocell test indicator light, for second radio channel and photocell test | Output for flashing light connection | Autoset operating parameters | Electronic torque adjustment (separate for each motor) | Anti-crushing protection with force cut-off | Electronic slowdowns on opening and closing (separate for each motor) | Possibility of parameter configuration and remote control management via the Advantouch system | Number of movements | Access password for programming | Maintenance message
APPLICATION
1 or 2 operators for swing gates, opposing sliding gates and industrial folding gates with a maximum of 2 leaves
SUPPLY OF THE CONTROL UNIT
115 or 230 Vac (selectable) 50/60Hz
SUPPLY OF THE MOTOR
24 Vdc / 240 W + 240 W
MAIN FUNCTIONS
Integrated LCD display | Integrated 433.92 MHz radio receiver 64 codes and 3 codings (Advanced Rolling Code, Rolling Code, Fixed Code) | Removable terminal blocks | Separate limit switch inputs for each motor | Inputs for open, close, step and pedestrian | Separate inputs for photocell for open-close and close only | Stop input | Input for N.C. or 8K2 safety contact strip | Input for hydraulic motor encoder 24 Vdc | Output for 12 Vdc electric lock | 2 outputs configurable as warning light for open door, second radio channel, auxiliary light, zone light or light barrier test, flashing light, alarm for open door, Alarm NC inputs | Output for connection of flashing light | Autoset of operating parameters | Separate electronic torque setting for each motor | Separate electronic speed control for each motor | Crush protection with force cut-off and encoder management | Opening and closing slowdowns separately for each motor | Prepared for connection to KNX via X.BE (optional) | Prepared for control, configuration, diagnostics and firmware update via the BeUP app, via the PRO.UP accessory | Possibility of parameter configuration and management of hand-held transmitters with the Advantouch system | Number of maneuvers | Access password for programming | Maintenance message | Integrated battery charger
APPLICATION
1 to 2 operators for swing gates
SUPPLY OF THE CONTROL UNIT
100 ÷ 250 Vac – 50/60 Hz
SUPPLY OF THE MOTOR
24 Vdc / 130 W + 130 W
MAIN FUNCTIONS
Built-in LCD display | Built-in 433.92 MHz radio receiver with 512 codes and ARC radio coding | Removable terminal blocks | Separate limit switch inputs for each motor | Automatic, semi-automatic and dead man operating logic | Separate encoder inputs for each motor | Inputs for open, close, step, pedestrian and stop | Input for photocells active on open-close and photocells active on close only | Input for safety contact strip N.C. or 8K2 | Output for 12/24 Vdc electric lock | Two outputs configurable as indicator light for open door, auxiliary light, zone light, second radio channel, light barrier test, flashing light | Autoset of operating parameters | Separate electronic torque adjustment for each motor | Crush protection with force cut-off and encoder management | Electronic torque adjustment with automatic calculation for each travel point (STC SYSTEM) | Separately adjustable decelerations for each motor | Possibility of encoder or timed operation (managed via virtual encoder) also independently between the two motors | Integrated ESA+ for energy saving | Prepared for KNX connection via X.BE (optional) | Prepared for control, configuration, diagnostics and firmware update via the BeUP app, via the PRO.UP accessory | Possibility of configuring parameters and managing handheld transmitters with the Advantouch system | Number of maneuvers | Access and programming password | Maintenance message | Integrated battery charger | Standby consumption in accordance with European Regulation (EU) 2023/826
