BRAINY24 PLUS

APPLICATION

1 or 2 operators for swing gates, opposing sliding gates and industrial folding gates with a maximum of 2 leaves

SUPPLY OF THE CONTROL UNIT

115 or 230 Vac (selectable) 50/60Hz

SUPPLY OF THE MOTOR

24 Vdc / 240 W + 240 W

MAIN FUNCTIONS

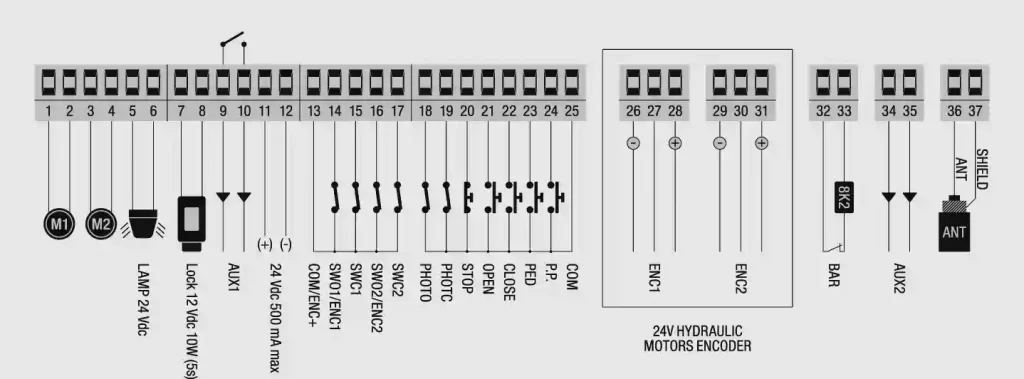

Integrated LCD display | Integrated 433.92 MHz radio receiver 64 codes and 3 codings (Advanced Rolling Code, Rolling Code, Fixed Code) | Removable terminal blocks | Separate limit switch inputs for each motor | Inputs for open, close, step and pedestrian | Separate inputs for photocell for open-close and close only | Stop input | Input for N.C. or 8K2 safety contact strip | Input for hydraulic motor encoder 24 Vdc | Output for 12 Vdc electric lock | 2 outputs configurable as warning light for open door, second radio channel, auxiliary light, zone light or light barrier test, flashing light, alarm for open door, Alarm NC inputs | Output for connection of flashing light | Autoset of operating parameters | Separate electronic torque setting for each motor | Separate electronic speed control for each motor | Crush protection with force cut-off and encoder management | Opening and closing slowdowns separately for each motor | Prepared for connection to KNX via X.BE (optional) | Prepared for control, configuration, diagnostics and firmware update via the BeUP app, via the PRO.UP accessory | Possibility of parameter configuration and management of hand-held transmitters with the Advantouch system | Number of maneuvers | Access password for programming | Maintenance message | Integrated battery charger
