230 Vac

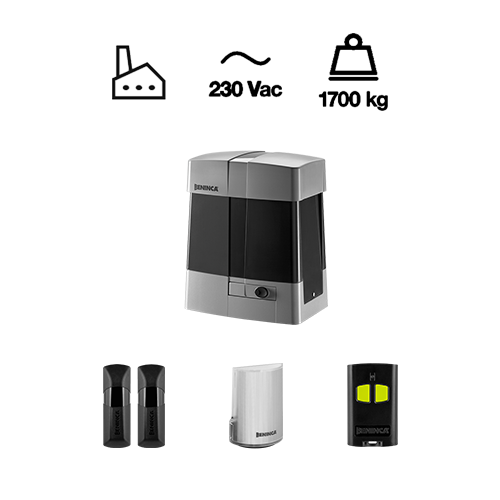

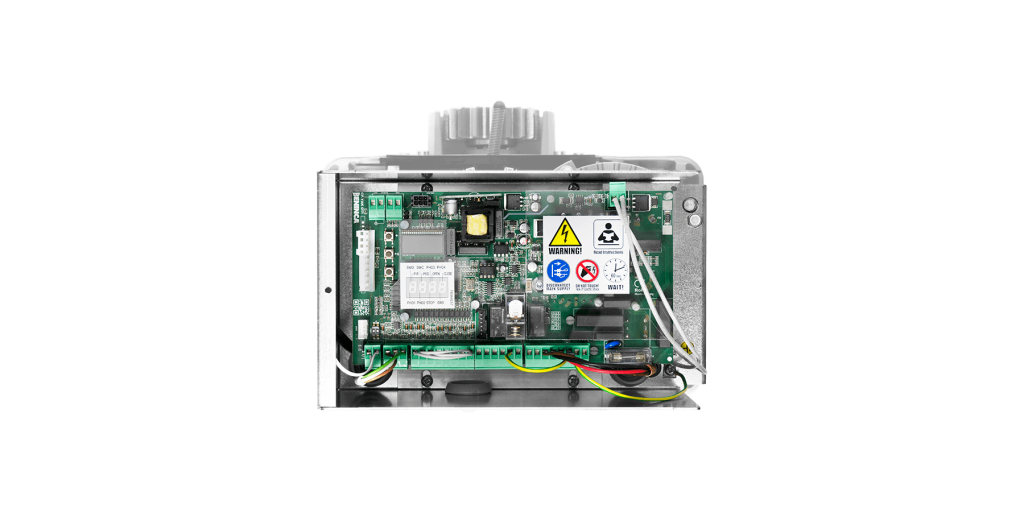

230 Vac drive for intensive use with magnetic limit switches, integrated control, virtual encoder and inverter | The control placed in the upper part of the motor allows easy wiring | Oil lubrication to ensure maximum service life of the reduction gear. The type of oil used is also particularly effective and guarantees optimum performance even at low temperatures | Reduced mechanical wear on components | Thanks to the virtual encoder, it is possible to manage decelerations optimally, track their progression (STC system) and manage the torque output according to the position of the gate, guaranteeing maximum safety | The speed can be set to values from 10 to 24 m/min depending on the weight of the gate | A safety sensor cuts off the power supply to the operator during unlocking | ONE.2 receiverWI included | Vandal-proof steel housing (optional)

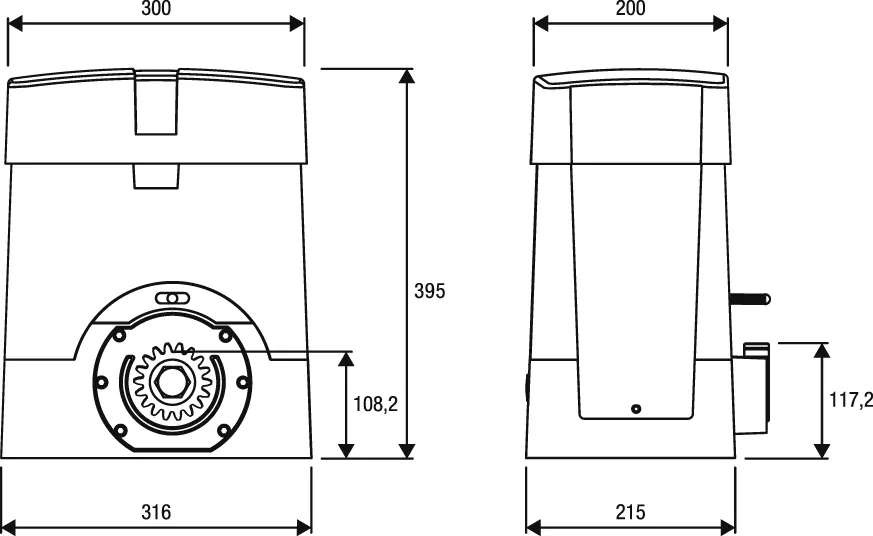

Base plate with anchor bolts included. Floor mounting motor 269×106 mm, 4 pcs. Ø 12 mm
Controls
CP.BULL OMI
APPLICATION
1 Operator for sliding gates series BULL17 OMI
SUPPLY OF THE CONTROL UNIT
230 Vac – 50/60 Hz
SUPPLY OF THE MOTOR
230 Vac / 1000 W
MAIN FUNCTIONS
Integrated LCD display | 433.92MHz radio receiver model ONE2.WI included as standard | Removable terminal strips | Automatic, semi-automatic or dead man function logic | Motor limit switch inputs | Inputs for step operation, opening, closing, pedestrian door, stop | 2 configurable inputs for light barrier activation when opening as well as closing or only when closing | Input for N.C. or 8K2 safety contact strip | Input for safety sensor | Output for “Door open” indicator light, auxiliary light, output for second radio channel | output for flashing light connection | autoset operating parameters | electronic torque adjustment with automatic calculation for each movement point (STC SYSTEM) | anti-crushing protection with force cut-off | adjustable deceleration | configuration of parameters and management of handheld transmitters possible with Advantouch system | integrated inverter | virtual encoder | number of movements | access password for programming | maintenance message
