230 Vac | Intensive operation

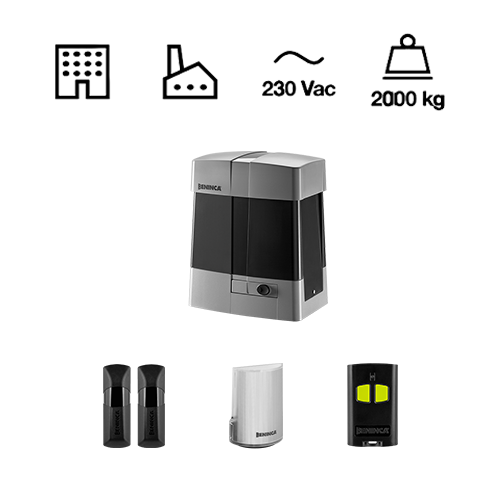

230 Vac operator for intensive use with magnetic limit switches, integrated control unit and encoder | Self-ventilated for greater intensity of use | Metal gearbox running in an oil bath for maximum performance even at low temperatures | Thanks to the properties of the new electric motor, it is particularly suitable for very intensive operation | The encoder device offers maximum safety and precision during door movement | Vandal-proof steel protective housing (optional)

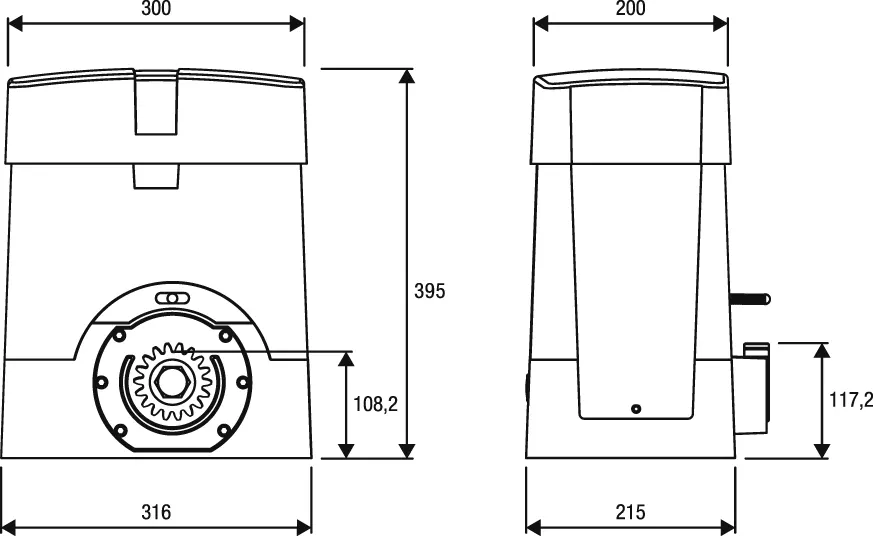

Base plate with anchor bolts included. Floor mounting motor 269×106 mm, 4 pcs. Ø 12 mm
Controls
CP.BULL20-HE
APPLICATION
1 Operator for sliding gates series BULL20 HE
SUPPLY OF THE CONTROL UNIT
230 Vac – 50/60 Hz
SUPPLY OF THE MOTOR
230 Vac / 1000 W
MAIN FUNCTIONS
Integrated LCD display | Integrated 433.92 MHz radio receiver with 64 codes and 3 radio codes (Advanced Rolling Code, Rolling Code, Fixed Code) | Removable terminal strips | Automatic, semi-automatic and dead man function logic | Encoder input for obstacle detection | Input for motor limit switch | Inputs for stop, opening, closing, pedestrian door and step mode | photocell input (PHOT O) activation programmable both on opening and closing and only on closing | photocell input (PHOT C) activation both on opening and closing | input for N.C. or 8k2 safety contact strip | Output configurable as indicator light for “gate open”, second radio channel or auxiliary light | Output for photocell test | Output for flashing light connection | Autoset operating parameters | Electronic adjustment of motor torque | Adjustable decelerations | Electronic braking | Electronic braking for precise stopping even with very heavy gates | Configuration of parameters and management of hand transmitters possible with Advantouch system | Number of movements | Access password for programming | Maintenance message
