230 Vac drive with magnetic limit switches, integrated control unit and encoder
230 Vac
230 Vac operator with magnetic limit switches, integrated control unit and encoder | The encoder provides pinch protection and precision during door movement | Vandal-proof steel protective housing (optional)

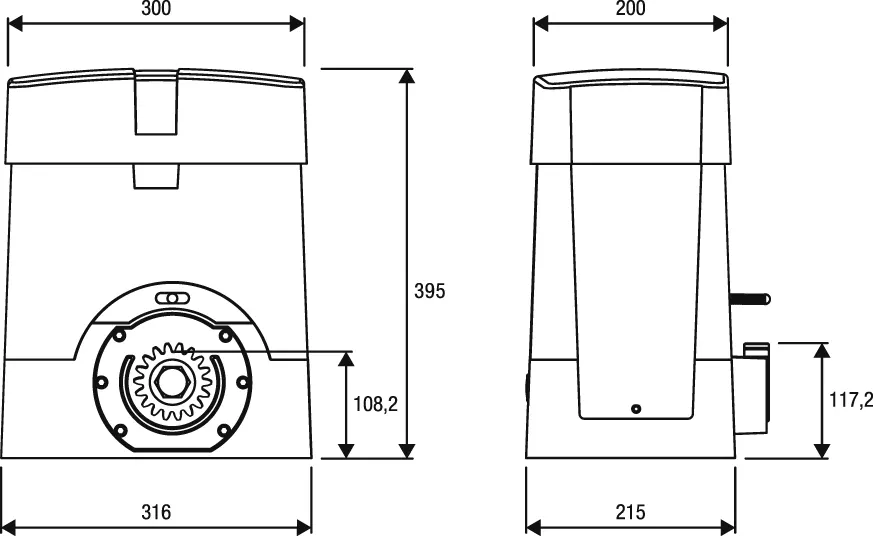

Base plate with anchor bolts included. Floor mounting motor 269×106 mm, 4 pcs. Ø 12 mm
| Mains supply | 230 Vac (50-60Hz) |
| Supply voltage motor | 230 Vac |
| Max. Power consumption | 2,9 A |
| Max. Thrust | 1667 N |
| Opening speed | 10.5 m/min |
| ED | 40% |
| Protection class | IP44 |
| Integrated control | Yes |
| Integrated receiver | Yes |
| Encoder | Yes |
| Virtual encoder | Nope |
| Magnetic limit switch | Yes |
| Pinion for gear rack | M4 Z18 |
| Operating temperature | -20°C /+50°C |
| Lubrication | BOLD |
| Max. Gate weight | 2000 kg |
| Weight | 21.3 kg |
| Quantity per pallet | 20 |
APPLICATION

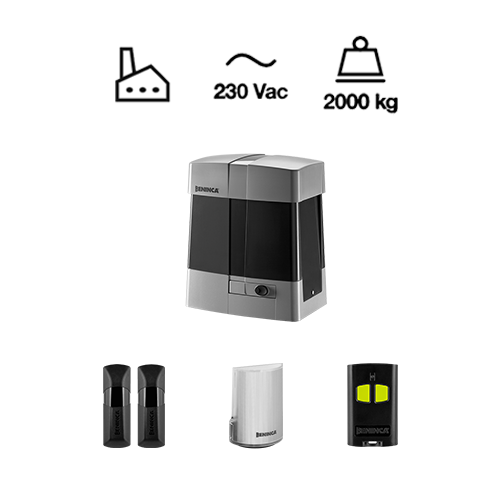

1 operator for sliding gates series BULL10M, BULL15M and BULL20M
SUPPLY OF THE CONTROL UNIT
230 Vac – 50/60 Hz
SUPPLY OF THE MOTOR
230 Vac / 1000 W
MAIN FUNCTIONS
Integrated LCD display | Integrated 433.92 MHz radio receiver with 64 codes and 3 radio codes (Advanced Rolling Code, Rolling Code, Fixed Code) | Removable terminal strips | Automatic, semi-automatic and dead man function logic | Encoder input for obstacle detection | Input for motor limit switch | Inputs for stop, opening, closing, pedestrian door and step mode | photocell input (PHOT O) activation programmable both on opening and closing and only on closing | photocell input (PHOT C) activation both on opening and closing | input for N.C. or 8k2 safety contact strip | Output configurable as indicator light for “gate open”, second radio channel or auxiliary light | Output for photocell test | Output for flashing light connection | Autoset operating parameters | Electronic adjustment of motor torque | Adjustable deceleration | Electronic braking for precise stopping even with very heavy gates | Configuration of parameters and management of hand transmitters possible with Advantouch system | Number of movements | Access password for programming | Maintenance message
