24 Vdc | Intensive operation
24 Vdc operator for intensive use with integrated control unit and virtual encoder | Standby consumption in accordance with European Regulation (EU) 2023/826 | 115/230 Vac switching power supply for low power consumption and long operator life | The control unit located on the top of the motor allows for easy wiring | Thanks to the virtual encoder, it is possible to optimally manage braking, monitor its progression (STC system) and manage the torque delivery according to the gate position, thus guaranteeing maximum safety | Operation is guaranteed even in the event of a power failure thanks to batteries that can be perfectly integrated into the motor | Anti-crushing system with force cut-off | Designed for connecting the X.BE accessory for integrating KNX home automation systems and programming via the BeUP app and the PRO.UP interface

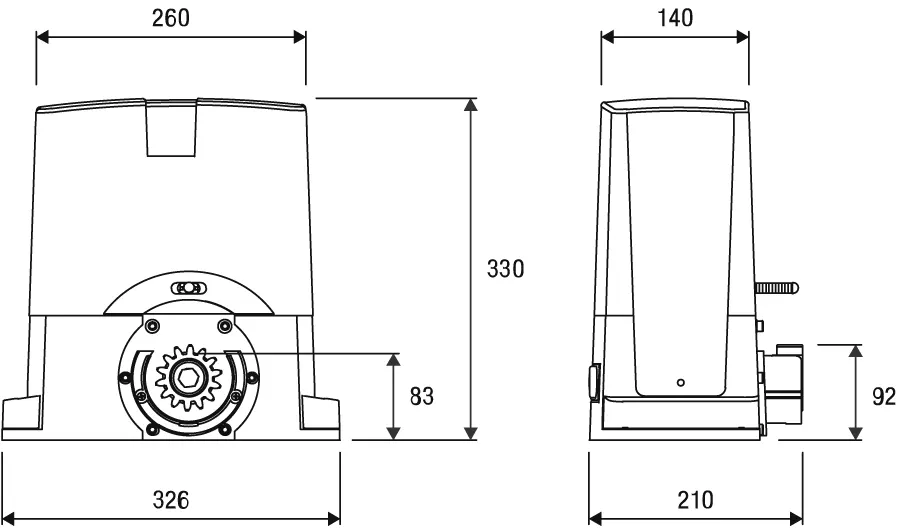

Includes reinforced foundation template. Dimensions: 326 x 164.5 x 2 mm, motor center distance: 301 x 75 mm, 4 holes Ø 8.5 mm.
Drive sets
1X BULL624SE
24 Vdc drive for intensive use with integrated control unit and virtual encoder
1X PUPILLA.T
Pair of photocells can be aligned in three positions, power supply 14÷30 Vac / 12÷30 Vdc | Close mounting of 2 pairs is possible without synchronization
1X LAMPY
Flashing light 12 ÷ 255 Vac / 14 ÷ 255 Vdc with integrated antenna
1X TO.GO2VA
Hand-held transmitter with 2 channels, 433.92 MHz, with Advanced Rolling Code and Rolling Code
Controls
CP.B24-D120
APPLICATION
1 operator for BULL SE series sliding gate operators
SUPPLY OF THE CONTROL UNIT
115 or 230 Vac (selectable) 50/60Hz
SUPPLY OF THE MOTOR
24 Vdc / 9 A
MAIN FUNCTIONS
Built-in LCD display | Built-in 433.92 MHz radio receiver with 2048 codes and ARC radio coding | Removable terminal strips | Logic for automatic, semi-automatic and dead man operation | Inputs for motor limit switches | Input for photocell (PHO) active both when opening and closing | Input for photocell (PHC) active only when closing | Input for safety contact strip N.C. or 8K2 | OPEN input configurable as pedestrian | Two outputs configurable as gate open indicator light, auxiliary light, zone light, second radio channel, light barrier test, flashing light, alarm contact | Output for flashing light connection | Prepared for counter-rotating leaf operation via SIS synchronization board (optional) | Prepared for KNX connection via X.BE (optional) | Prepared for management configuration, diagnostics and firmware update via the BeUP app, via PRO accessories.UP | Autoset operating parameters | Electronic torque adjustment with automatic calculation for each travel (STC SYSTEM) | Separate electronic adjustment of opening and closing speeds | Crush protection with force cut-off | Virtual encoder | Adjustable decelerations | Integrated ESA+ for energy saving | Possibility of configuring parameters and managing handheld transmitters with Advantouch system | Number of maneuvers | Password for programming access | Maintenance message | Integrated battery charger, compatible with batteries Mod. DA.BT2/DA.BT6 | Standby consumption in accordance with European Regulation (EU) 2023/826
