24 Vdc | Intensive operation

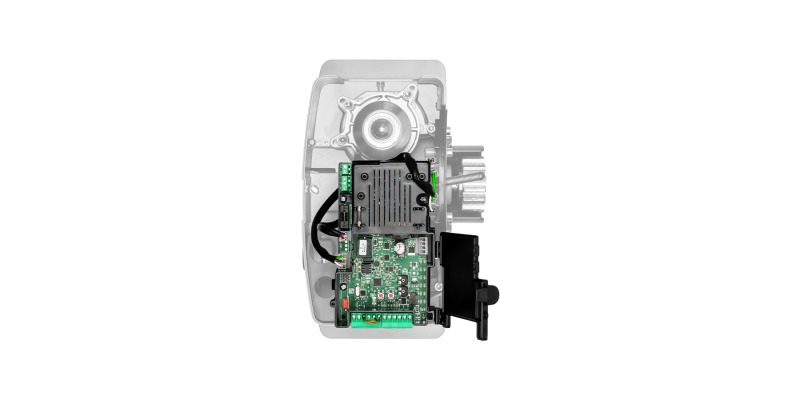

24 Vdc operator for intensive use with integrated control unit and virtual encoder | Standby consumption in accordance with European Regulation (EU) 2023/826 | 115/230 Vac switching power supply for low power consumption and long operator life | Control via trimmer and dip-switch | Thanks to the virtual encoder, it is possible to optimally manage decelerations, monitor their progression (STC system) and manage the torque delivery according to the gate position, thus guaranteeing maximum safety | Operation is guaranteed even in the event of a power failure thanks to batteries (2 x 1.2 Ah) that can be perfectly integrated into the motor | Anti-crushing system with force cut-off | Designed for connection of the X.BE accessory for integration with KNX home automation systems and programming via the BeUP app and the PRO.UP interface
Includes reinforced foundation template. Dimensions: 326 x 164.5 x 2 mm, motor center distance: 301 x 75 mm, 4 holes Ø 8.5 mm.
Controls
CP.B24-SW
APPLICATION
1 operator for BULL SW series sliding gate operators
SUPPLY OF THE CONTROL UNIT
230 Vac – 50/60 Hz
SUPPLY OF THE MOTOR
24 Vdc / 8 A
MAIN FUNCTIONS
Setting of parameters and operating logic via trimmers, dip switches and buttons | Built-in 433.92 MHz radio receiver with 64 codes and ARC radio coding | Fixed terminal strips | Automatic, semi-automatic and deadman operating logic | Inputs for motor limit switches | Inputs for step operation, stop, light barrier | Light barrier input active for opening and closing as well as programmable only for closing | Stop input can be set as pedestrian | Output configurable as gate open warning light or second radio channel | Autoset operating parameters | Electronic torque regulation with automatic calculation for each travel path (STC SYSTEM) | Separate electronic adjustment of opening and closing speeds and closing speeds | Crush protection with force cut-off | Virtual encoder | Adjustable decelerations | Integrated ESA+ for energy saving | Possibility of configuring parameters and managing hand-held transmitters with Advantouch system | Connection option for SW.CB battery charger (optional) | Prepared for KNX connection via X.BE board (optional) | Using the pro.UP accessory and the BeUP app allows access to an advanced programming level, querying the number of maneuvers and protecting the control unit with a password, as well as providing diagnostics and firmware update functions | Standby consumption in accordance with European Regulation (EU) 2023/826
