230 Vac
230 Vac operator with integrated control unit | Standby consumption in accordance with European Regulation (EU) 2023/826 | The control unit, which is located in the upper part of the operator, makes wiring work easier | Encoder connection possible via MAG.E accessory | The encoder provides anti-crushing protection and precision during door movement | Magnetic limit switch (MLS) available as an option | Prepared for connection of X.BE (KNX), Q.BE (MQTT) and PRO.UP interface accessories

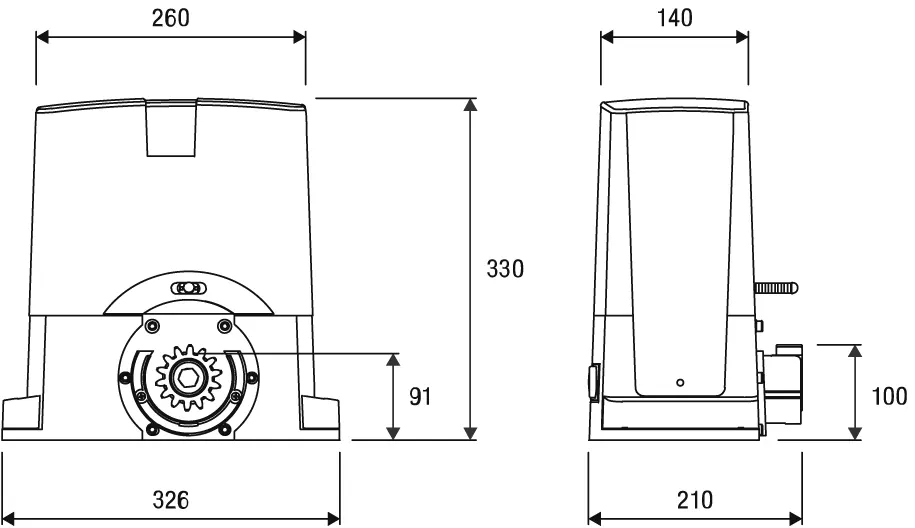

Including reinforced foundation template. Dimensions 326×164.5×2 mm, center distance of the motor 301×75 mm, no. 4 holes Ø 8.5 mm
Drive sets
1X BULL6MLT SE
230 Vac drive with integrated control unit

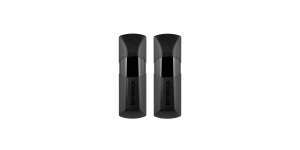

1X PUPILLA.T
Pair of photocells can be aligned in three positions, power supply 14÷30 Vac / 12÷30 Vdc | Close mounting of 2 pairs is possible without synchronization

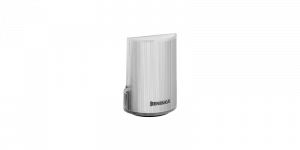

1X STAR
Flashing light 12 ÷ 255 Vac / 14 ÷ 255 Vdc with integrated antenna
1X TO.GO2VA
Hand-held transmitter with 2 channels, 433.92 MHz, with Advanced Rolling Code and Rolling Code
Controls
CP.BULL6-SE
APPLICATION
1 Operator for sliding gates series BULL6M SE.S and BULL6MLT SE
SUPPLY OF THE CONTROL UNIT
230 Vac – 50/60 Hz
SUPPLY OF THE MOTOR
230 Vac / 9 A
MAIN FUNCTIONS
Integrated LCD display | Integrated 433.92 MHz radio receiver, 64 codes and ARC coding | Removable terminal blocks | Automatic, semi-automatic and dead man operating logic | Motor limit switch inputs | Light barrier input (PHO) active both when opening and closing | Light barrier input (PHC) only active when closing | Input for safety edge N.C. or 8K2 | Opening input configurable as pedestrian input | Two configurable outputs as display for open door, lighting, zone light, second radio channel, light barrier test, blinker, alarm contact | Output for blinker connection | Automatic setting of operating parameters | Separate electronic settings of opening and closing speed | Adjustable delays | Integrated ESA+ for energy saving | Preparation for counter-rotating leaves by SIS synchronization card (optional) | Intended for connection of X.BE (KNX) and Q.BE (MQTT) accessories | Configuration, diagnostics, firmware update and management of remote controls via the BeUP app using PRO.UP accessories | Number of cycles | Programming access password | Maintenance information | Standby consumption in accordance with European Regulation (EU) 2023/826
