230 Vac
230 Vac operator with integrated control unit and encoder | The encoder provides crush protection and precision during door movement | The all-metal mechanics and oil lubrication ensure maximum service life of the operator. The type of lubricating oil used is extremely efficient and offers high performance even at low temperatures | Reduced mechanical wear on components

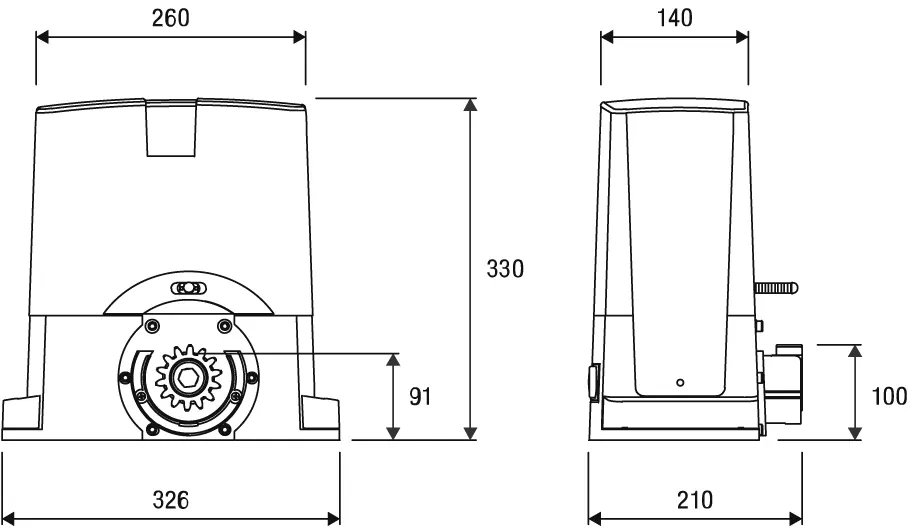

Including reinforced foundation template. Dimensions 326×164.5×2 mm, center distance of the motor 301×75 mm, no. 4 holes Ø 8.5 mm
Drive sets
1X BULL8 OM
230 Vac drive with integrated control unit and encoder
1X PUPILLA.T
Pair of photocells can be aligned in three positions, power supply 14÷30 Vac / 12÷30 Vdc | Close mounting of 2 pairs is possible without synchronization
1X LAMPY
Flashing light 12 ÷ 255 Vac / 14 ÷ 255 Vdc with integrated antenna
1X TO.GO2VA
Hand-held transmitter with 2 channels, 433.92 MHz, with Advanced Rolling Code and Rolling Code
Controls
CP.BULL8-OM
APPLICATION
1 operator for sliding gates series BULL8M and BULL8 OM
SUPPLY OF THE CONTROL UNIT
230 Vac – 50/60 Hz
SUPPLY OF THE MOTOR
230 Vdc / 750 W
MAIN FUNCTIONS
Integrated LCD display | Integrated 433.92 MHz radio receiver with 64 codes and 3 radio codes (advanced rolling code, rolling code, fixed code) | Removable terminal strips | Automatic, semi-automatic or with dead man function | Encoder input for obstacle detection | Inputs for motor limit switches | Inputs for stop, (PHOT O) activation programmable both on opening and closing as well as only on closing | Photocell input (PHOT C) activation both on opening and closing | Input for N.C. or 8k2 safety contact strip | Output configurable as indicator light for “door open”, second radio channel or photocell test and auxiliary light | Autoset operating parameters | Electronic adjustment of motor torque | Adjustable deceleration | Electronic braking | Configuration of parameters and management of hand transmitters possible with Advantouch system | Number of movements | Access password for programming
