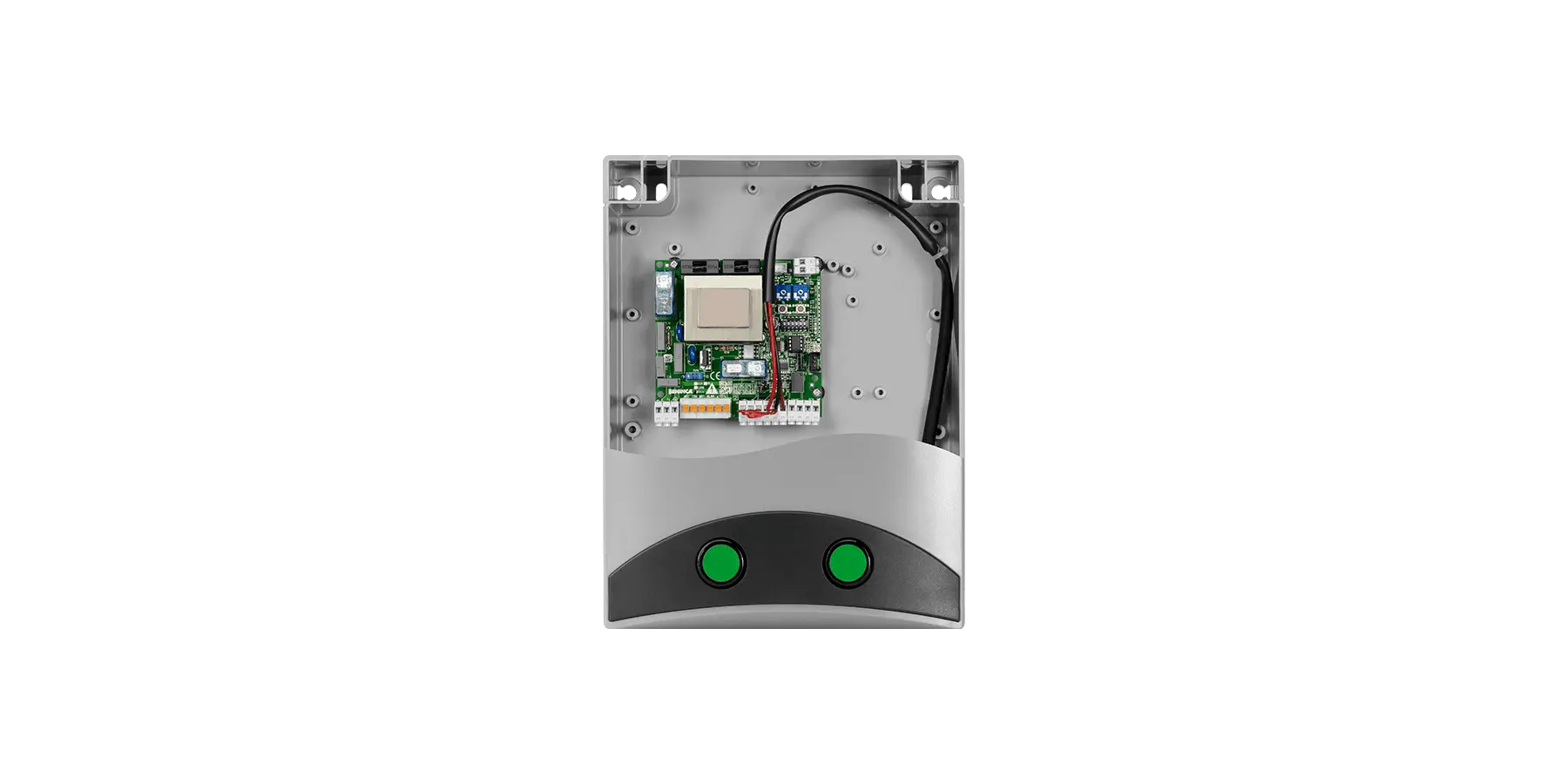

CELL.P

APPLICATION

1 Operator for industrial sliding gates, folding gates and roller grilles

SUPPLY OF THE CONTROL UNIT

230 Vac – 50/60 Hz

SUPPLY OF THE MOTOR

230 Vac / 1000 W

MAIN FUNCTIONS

Setting of parameters and operating logic with trimmers and dip switches | Integrated 433.92 MHz radio receiver with 64 codes and 3 radio codes (advanced rolling code, rolling code, fixed code) | Removable terminal strips | Automatic and semi-automatic operating logic and dead man function | Inputs for motor limit switch | Input for N.C. or 8K2 safety contact strip or photocell | Inputs for opening buttons, programmable for step operation and closing | Output for “Door open” indicator light | Output for flashing light connection | Electronic adjustment of motor torque (5 levels) | Management of hand-held transmitters stored in the integrated receiver possible via Advantouch system
