230 Vac
230 Vac self-locking electromechanical drive | Mechanics made entirely of metal, integrated mechanical end stop
Incl. Cam disk
Technical data
| Supply voltage motor | 230 Vac (50-60Hz) |
| Max. Power consumption | 1,6 A |
| Torque | 220 Nm |
| Opening hours | 11″ |
| ED | 40% |
| Protection class | IP67 |
| Integrated control | Nope |
| Encoder | Nope |
| Operating temperature | -20°C /+50°C |
| Lubrication | BOLD |
| Max. Wing length | 2,1 m |
| Weight | 11.0 kg |
| Quantity per pallet | 44 |
| Weight DU.ITIX | 8.1 kg |
| Weight DU.ITCF | 9.6 kg |
| Number of boxes per pallet | 32 |
Controls
BRAINY
APPLICATION
1 to 2 operators for swing gates, opposing sliding gates, hydraulic operators and industrial folding gates
SUPPLY OF THE CONTROL UNIT
230 Vac – 50/60 Hz
SUPPLY OF THE MOTOR
230 Vac / 600 W + 600 W
MAIN FUNCTIONS
Integrated LCD display | Integrated 433.92 MHz radio receiver with 64 codes and 3 radio codings (advanced rolling code, rolling code, fixed code) | Removable terminal blocks | Automatic, semi-automatic or dead man function logic | Encoder input for obstacle detection | Separate limit switch inputs for each motor | Inputs for opening, closing, pedestrian door, step mode, stop | Separate inputs for photocell active on open-close and photocell only active on close | Input for safety contact strip N.C. or 8K2 | Output for electric lock 230 Vac and 12 Vac/dc | Configurable outputs such as “door open” indicator light, auxiliary light, second radio channel and photocell test | Output for flashing light connection | Autoset for operating parameters (motors with encoder) | Electronic setting of torque (separately for each motor) and operating times | Adjustable slowdown | Possibility of parameter configuration and hand transmitter management via the Advantouch system | Number of movements | Access password for programming | Maintenance message
HEADY
APPLICATION
1 to 2 operators for swing gates
SUPPLY OF THE CONTROL UNIT
230 Vac – 50/60 Hz
SUPPLY OF THE MOTOR
230 Vac / 500 W + 500 W
MAIN FUNCTIONS
Integrated LCD display | Integrated 433.92 MHz radio receiver with 64 codes and 3 radio codings (Advanced Rolling Code, Rolling Code, Fixed Code) | Removable terminal blocks | Automatic, semi-automatic function logic | Input for step operation, pedestrian door and stop | Separate inputs for photocell programmable for activation on opening-closing or only on closing | Output for 230 Vac electric lock/auxiliary lighting | Output for “gate open” indicator light, second radio channel and photocell test | Output for flashing light connection | Electronic setting of torque (separately for each motor) and operating times | Fixed slowdowns | Possibility of parameter configuration and hand transmitter management via the Advantouch system | Number of movements | Access password for programming | Maintenance message

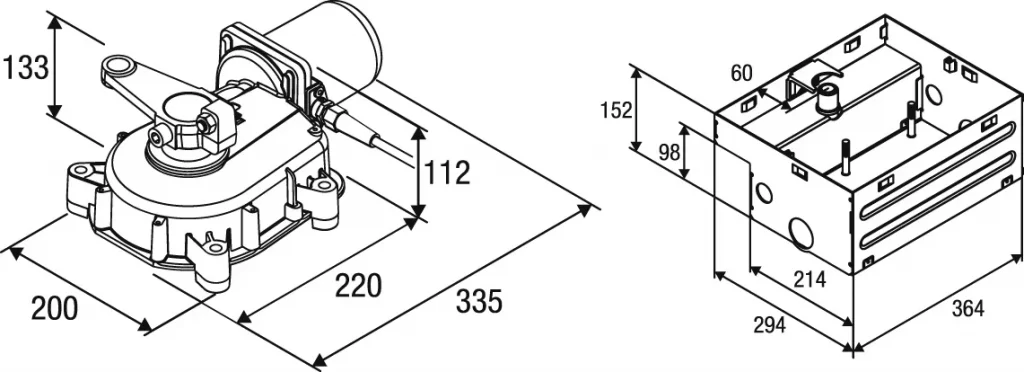

Technical diagram
