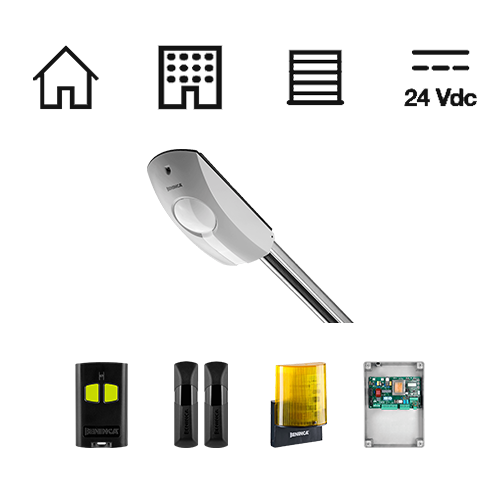

24 Vdc | Intensive operation

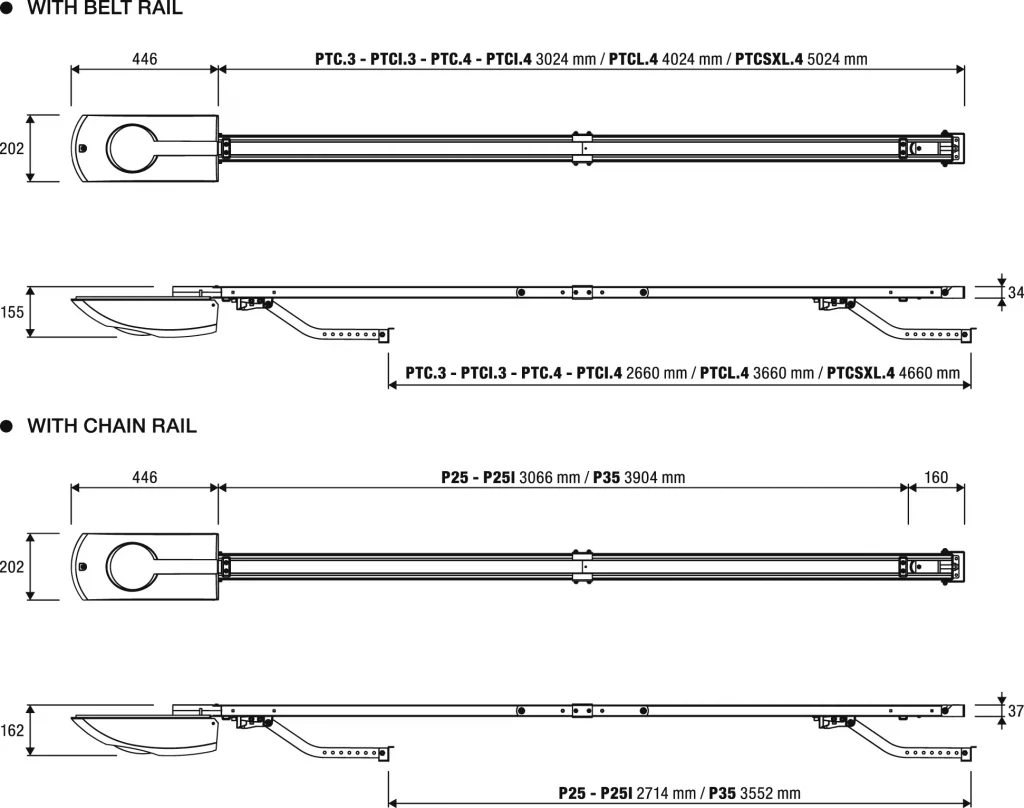

24 Vdc operator for intensive use with integrated control and encoder | Adjustable stroke by means of a mechanical stop in the case of rails with belt drive and two stops in the case of rails with chain drive | Anti-crushing system with power cut-off | Safe operation via batteries that can be perfectly integrated into the motor even in the event of a power failure | Advanced electronics with display and low-power auxiliary lighting | The encoder device offers maximum safety and precision in door movement | Quick coupling system of the connecting arm of the sliding shoe to the door
Delivery without rail
Controls
CP.J4ESA
APPLICATION
1 Drive Series JM.3ESA, JM.4ESA
SUPPLY OF THE CONTROL UNIT
230 Vac – 50/60 Hz
SUPPLY OF THE MOTOR
24 Vdc / 8.5 A
MAIN FUNCTIONS
Integrated LCD display | Integrated 433.92 MHz radio receiver with 64 codes and 3 radio codings (advanced rolling code, rolling code, fixed code) | Integrated ESA SYSTEM device for energy saving | Fixed terminal strips | Automatic and semi-automatic function logic | Inputs for step operation, open, close, stop, light barrier | Input for N.C. or 8K2 safety contact strip | Output configurable as “Door open” indicator light, auxiliary light, second radio channel or area light | Output for flashing light connection | Light barrier test | Autoset operating parameters | Electronic torque setting with automatic calculation for each movement point (STC SYSTEM) | Crush protection with force cut-off and encoder management | Possibility of setting start-up for 2 seconds at reduced speed (SOFT START) | Adjustable deceleration | Possibility of parameter configuration and hand-held transmitter management via the Advantouch system | Number of movements | Access password for programming | Maintenance message
