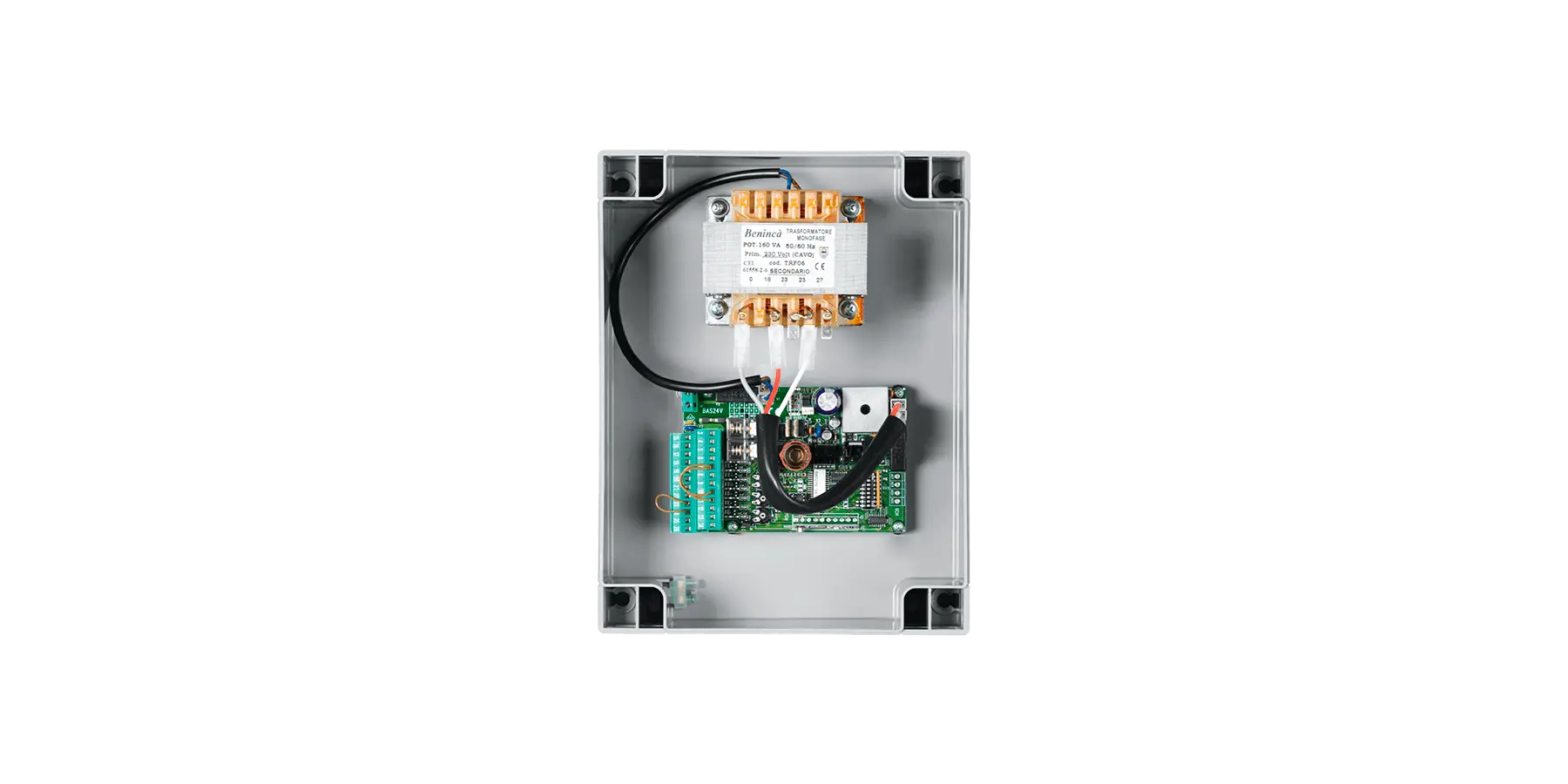

LOGICA24

APPLICATION

1 to 2 operators for overhead doors

SUPPLY OF THE CONTROL UNIT

230 Vac – 50/60 Hz

SUPPLY OF THE MOTOR

24 Vdc

MAIN FUNCTIONS

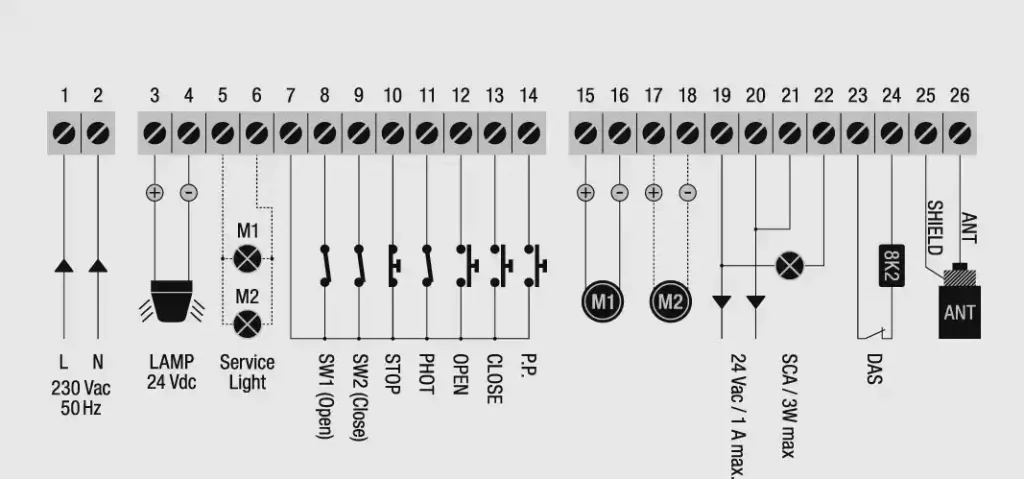

Setting of parameters and operating logic with trimmers and dip-switches | Integrated 433.92 MHz radio receiver with 64 codes and ARC radio coding | Removable terminal blocks | Automatic and semi-automatic operating logic | Inputs for motor limit switches | Inputs for opening, closing, stop, stepping, photocell | Input for N.C. or 8K2 safety contact strip | Output for auxiliary light 24 Vac/dc | Electronic torque adjustment | Crush protection with force cut-off | Fixed deceleration | Management of hand-held transmitters stored in the integrated receiver possible via Advantouch system
