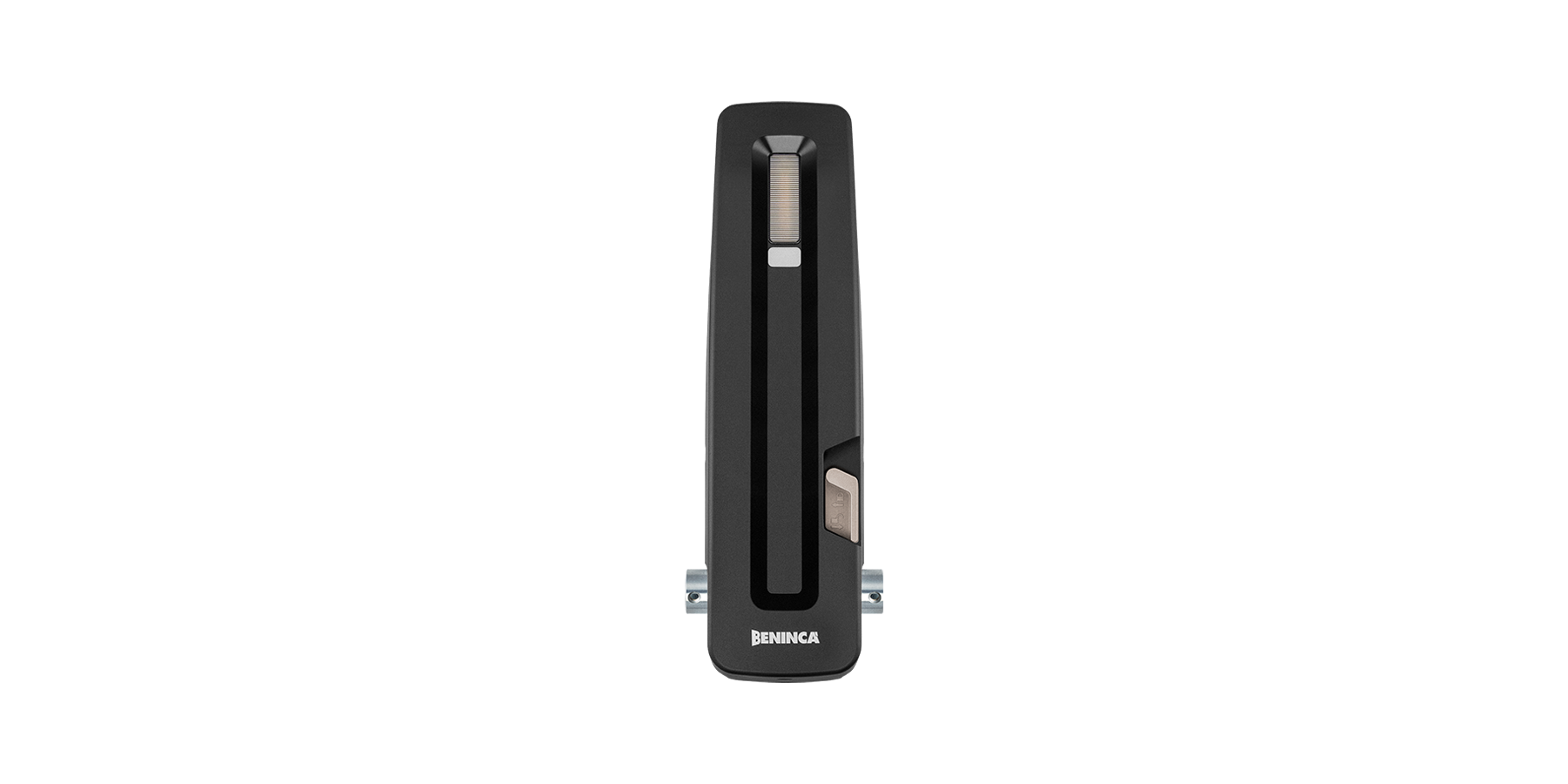

MARK
24 Vdc | Intensive operation

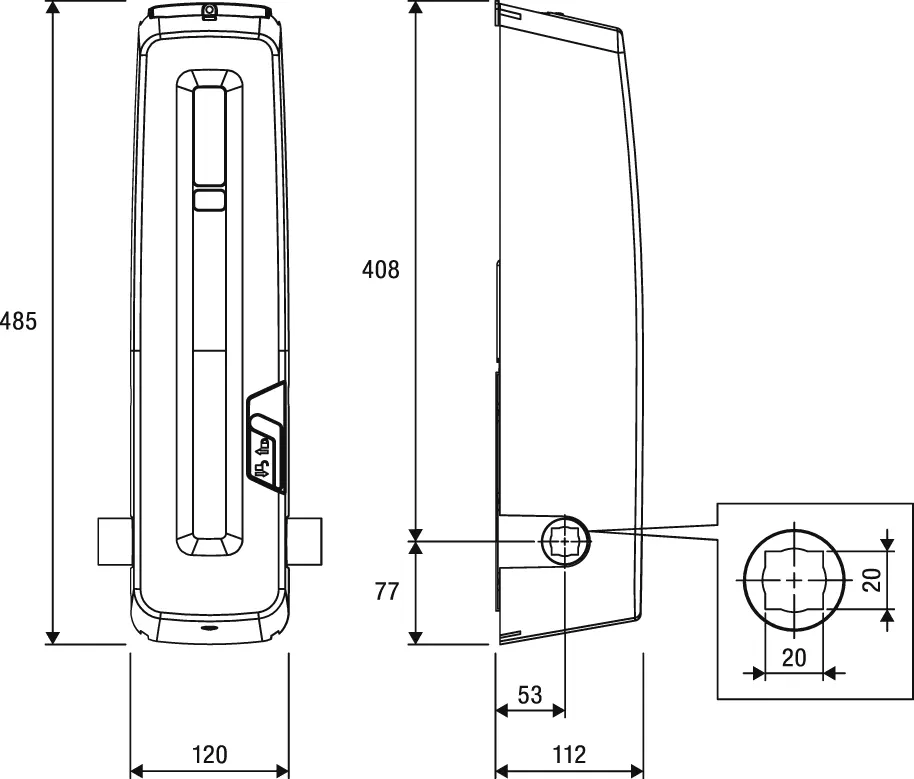

24 Vdc drive for intensive use with integrated control unit and encoder | Standby consumption in accordance with European Regulation (EU) 2023/826 | 115/230 Vac switching power supply for low power consumption and long service life of the operator | Equipped with an integrated 14-LED auxiliary light to guarantee high light output | The operator is characterized by its compact dimensions (48 cm long), which allow for simplified door compensation and quick and easy installation, The output shaft with a square through-hole of 20 x 20 mm and the center distance of only 53 mm allows perfect integration even in existing systems | The encoder device guarantees maximum safety and precision in the gate movement phases | Integrated opening limit switch and control button | STC system for controlling the torque depending on the gate position to ensure maximum safety | Safe operation via batteries even in the event of a power failure | Anti-crushing system with force cut-off | Designed for connection of the X.BE accessories for the integration of KNX home automation systems and for programming via the BeUP app and the PRO.UP interface | Integrated manual release lever
Controls

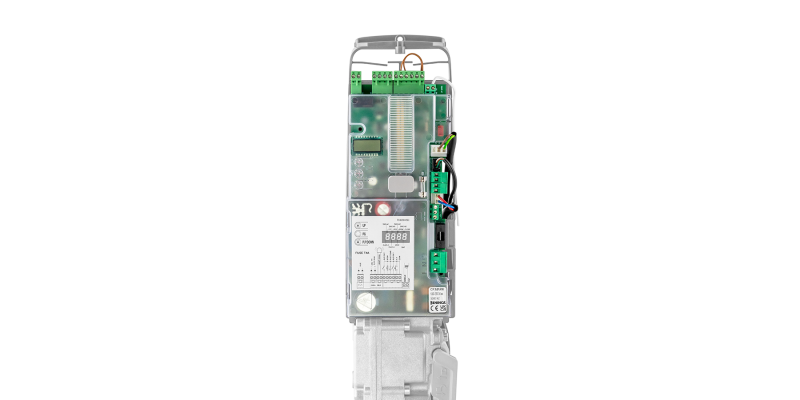

CP.MARK
APPLICATION
1 or 2 operators MARK series
SUPPLY OF THE CONTROL UNIT
100 ÷ 250 Vac – 50/60 Hz
SUPPLY OF THE MOTOR
24 Vdc / 5.5 A + 5.5 A
MAIN FUNCTIONS
Built-in LCD display | Built-in 433.92 MHz radio receiver with 64 codes and ARC radio coding | Removable terminal blocks | Automatic, semi-automatic and dead-man operating logic | Encoder input | Inputs for step and stop | Photocell input that can be set as input for safety contact strip N.C.- or 8K2 | Two inputs that can be configured as opening, closing, photocells active on opening and closing, photocells active only on closing, limit switch for opening and closing of the second motor | Limit switch input | Separate power supply output for each motor | 24 Vdc flashing light output | 24 Vdc max 500mA accessory power supply output | Output (230Vac 5A max) configurable as gate opening warning light, auxiliary light, zone light, second radio channel, photocell test, flashing light, alarm for open gate, alarm NC inputs | Auxiliary light with integrated LED | Second motor auxiliary light output | Autoset operating parameters | Electronic torque adjustment | Separate electronic adjustment of opening and closing speeds | Crush protection with force cut-off and encoder management | Electronic torque adjustment with automatic calculation for each travel point (STC SYSTEM) | Adjustable opening and closing decelerations for each motor | Integrated ESA+ for energy saving | Prepared for KNX connection via X.BE (optional) | Prepared for management, configuration, diagnostics and firmware update via the BeUP app, via the PRO.UP accessory | Possibility of configuring parameters and managing handheld transmitters with Advantouch system | Number of maneuvers | Access and programming password | Maintenance notification | Integrated battery charger compatible with 2 12V 1.2Ah batteries | Standby consumption in accordance with European Regulation (EU) 2023/826
