24 Vdc | Intensive operation

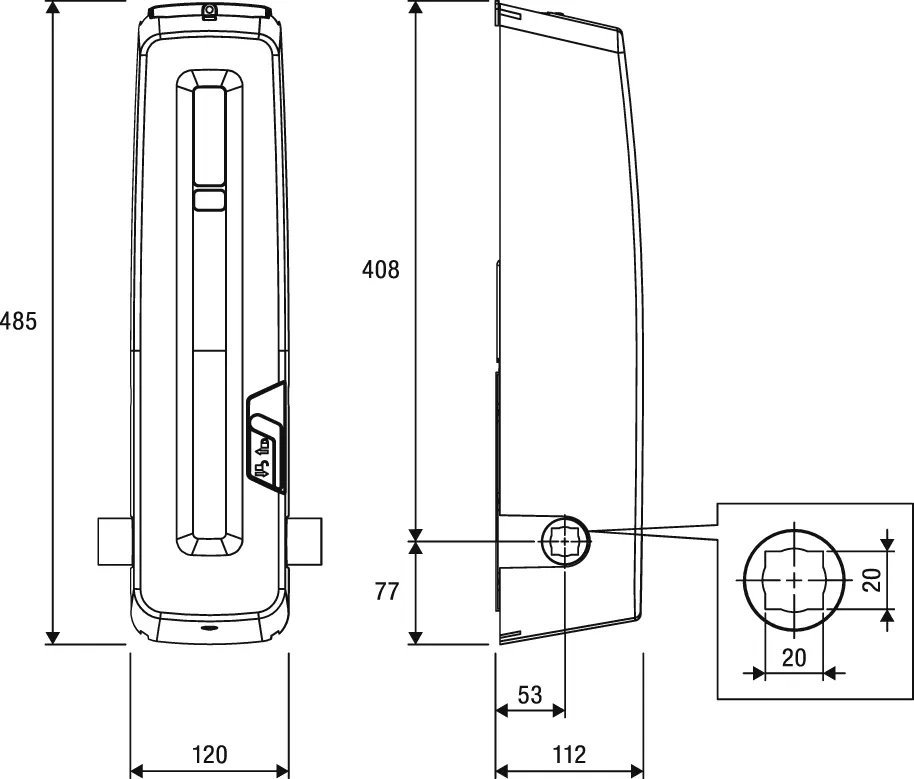

24 Vdc drive for intensive use | Standby consumption in accordance with European Regulation (EU) 2023/826 | Equipped with an integrated 14-LED auxiliary light, a high light output is guaranteed| The operator is characterized by its compact dimensions (48 cm length), which enable simplified door compensation and quick and easy installation, The output shaft with a square through-hole of 20 x 20 mm and the center distance of only 53 mm enables perfect integration even in existing systems | The encoder device guarantees maximum safety and precision in the gate movement phases | Integrated opening limit switch and control button | Safe operation via batteries even in the event of a power failure | Anti-crushing system with force cut-off | Integrated manual release lever
Controls

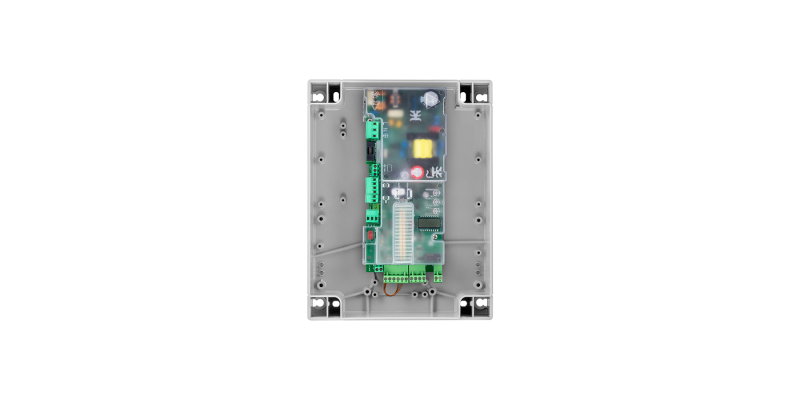

TILTY24
APPLICATION
1 to 2 operators for overhead doors
SUPPLY OF THE CONTROL UNIT
100 ÷ 250 Vac – 50/60 Hz
SUPPLY OF THE MOTOR
24 Vdc / 130 W + 130 W
MAIN FUNCTIONS
Built-in LCD display | Built-in 433.92 MHz radio receiver with 64 codes and ARC radio coding | Removable terminal blocks | Automatic, semi-automatic and dead-man operating logic | Encoder input | Inputs for stepping and stop | Photocell input that can be set as input for safety contact strip N.C.- or 8K2 | Two inputs that can be configured as open, close, photocell activation on open-close or close only, limit switch on open and close for the second motor | Limit switch input | Separate power supply output for each motor | 24 Vdc flashing light output | 24 Vdc max 500mA accessory power supply output | Output (230Vac 5A max) configurable as gate open warning light, auxiliary light, zone light, second radio channel, photocell test, flashing light, open door alarm, alarm NC inputs | 24 Vdc auxiliary light output | Autoset of operating parameters | Electronic torque adjustment | Separate electronic adjustment of opening and closing speeds | Crush protection with force cut-off and encoder management | Electronic torque adjustment with automatic calculation for each travel point (STC SYSTEM) | Adjustable opening and closing decelerations for each motor | Integrated ESA+ for energy saving | Prepared for KNX connection via X.BE (optional) | Prepared for control, configuration, diagnostics and firmware update via the BeUP app, via the PRO.UP accessory | Possibility of configuring parameters and managing handheld transmitters with Advantouch system | Number of maneuvers | Access and programming password | Maintenance notification | Integrated battery charger compatible with 2 12V 1.2Ah batteries | Standby consumption in accordance with European Regulation (EU) 2023/826
