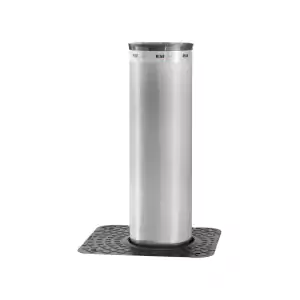

MAXIMUM M30/I

– Dynamic penetrability -0.8 m

– The emergency function E.F.O. (Emergency Fast Operation), which allows a fast exit time of 1.5 seconds, is available on request

– Cylinder with integrated LED lights, the control unit can operate 2 bollards simultaneously

– Foundation box in accordance with EN124 (40T) regulation and independent pump for each bollard, positioned laterally to avoid damage in the event of an impact and to facilitate maintenance

– In the event of a power failure, the bollard remains in the raised position (manual unlocking)

– Heating for the foundation box and acoustic warning signal available as accessories

Specifiche

Product features: MAXIMUM M30/I

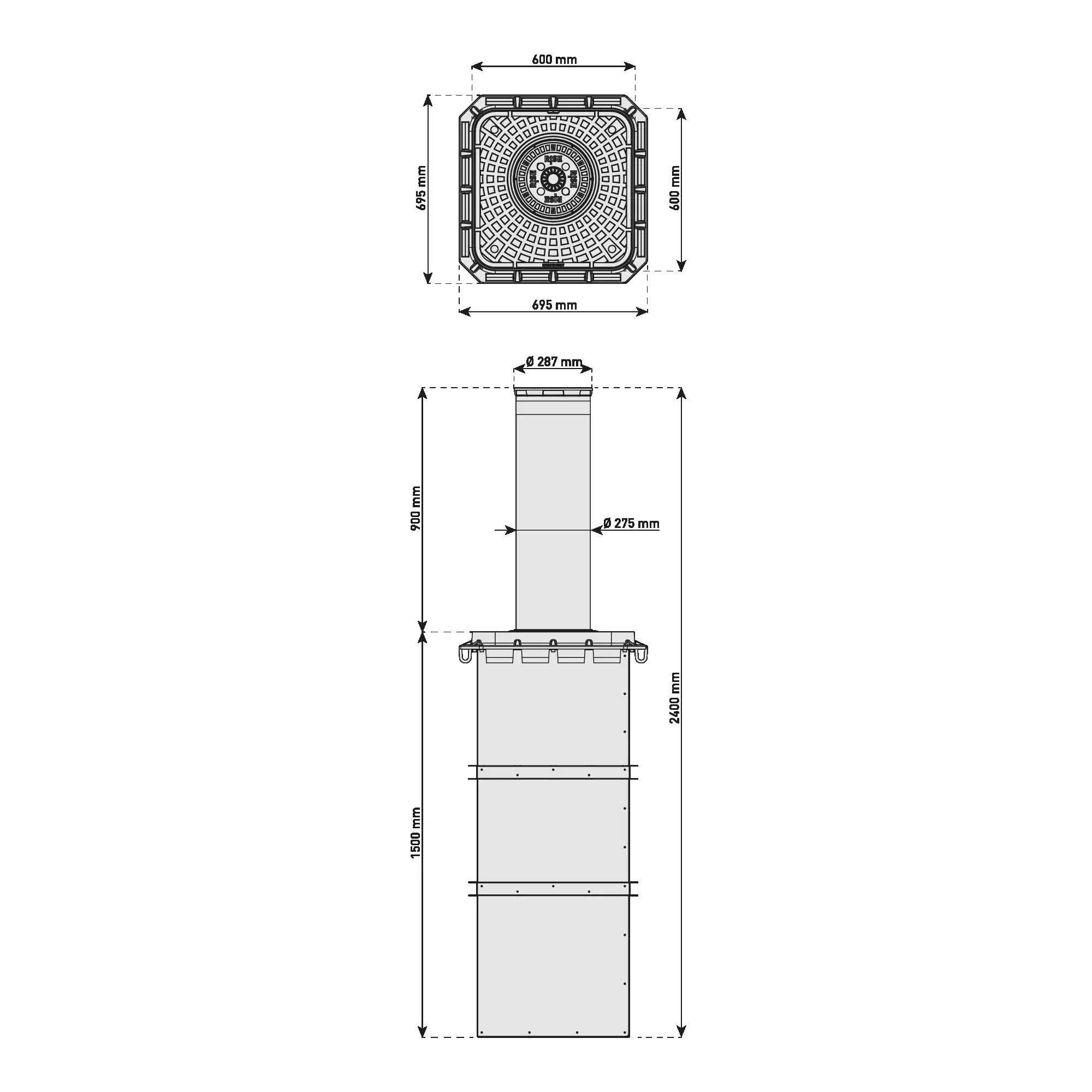

Cylinder height	900 mm
Cylinder diameter	275 mm
Exit time	4,5 s
Running-in time	4,5 s
Power supply	230 Vac – 50/60 Hz (versions with special voltage on request)
Power consumption	1.000 W
Hydraulic motor	Integrated
Load class in accordance with EN 124	D400 (40 tons)
Manual lowering in the event of a power failure	Manual unlocking system under the cover of the foundation box
Emergency exit (E.F.O.)	Optional
Emergency exit time	1,5 s
Capacitor	31.5 μF
Daily cycles	3.500
MCBF	3.000.000
Certified	IWA 14-1:2013 V/7200 [N3C] /48/90: -0.8 \| PAS68:2013 V/7500 [N3] /48/90: -0.5 \| ASTM F2656 Rating C730/7200 – P1
Impact resistance	250.000 J
Breaking strength	850.000 J
Operating temperature	-40°C ÷ +60°C [GL.HEAT required for temperatures lower than -10°C]
Protection class	IP67
Weight (without foundation box)	340 kg (350 kg MAX M30-I)

Documentation

Documentation: MAXIMUM M30/I

Product description | MAXIMUM M30

Controls

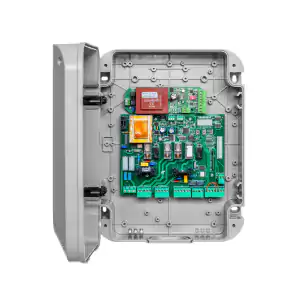

MAX.CP BL

Power supply 230 Vac 50/60 Hz | For operating 1 or 2 bollards of the SPARTACUS series | Integrated 433.92 MHz radio receiver with 64 codes and 3 radio codes (Advanced Rolling Code, Rolling Code, Fixed Code) | Removable terminal blocks | Programming of operating parameters and logics via integrated LCD display | Automatic function logic, automatic, semi-automatic or with dead man function | Access password for programming | With inputs for step-by-step commands (PP) separately for each bollard and inputs for global ALL UP and ALL DOWN commands for the exit and entry of both bollards | Integrated electronic board for managing the warning lights and audible warning signal | Separate limit switch inputs for each motor | Inputs for operating loops and safety devices (GL.PRES) | 2 configurable outputs as warning light for bollard status | IP54 protection class

Accessories

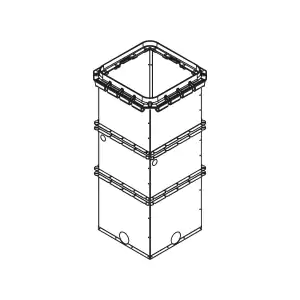

	CA.M30 Foundation box made of galvanized steel and cast iron.

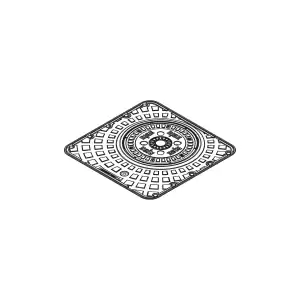

	GL.TOPM30 Cover for box CA.M30.
	EFO Device for extension in emergencies (emergency fast operation).

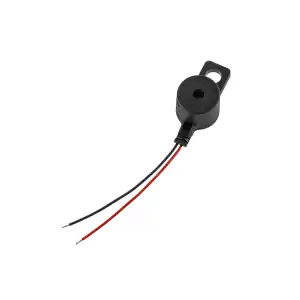

	GL.BUZZ Acoustic signaling device.

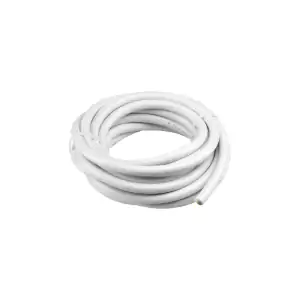

	GL.CABLE12 Cable FG12 12×1.5 mmq.
	GL.CABLE16 Cable FG16 16×1.5 mmq.
	GL.HEAT Heater for hydraulic bollard, activated at below 5 °C.

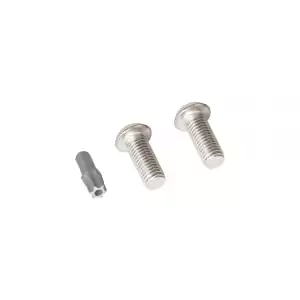

	GL.PKEY M30 Burglary protection kit.
