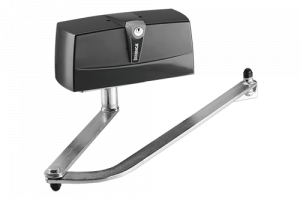

24 Vdc self-locking drive for intensive use
24 Vdc | Intensive operation
24 Vdc self-locking drive for intensive use | Crush protection with force cut-off | Operation also possible with battery | Integrated electromechanical stops for opening and closing | Robust, galvanized steel articulated arm protected against shearing risk
Delivery without arm

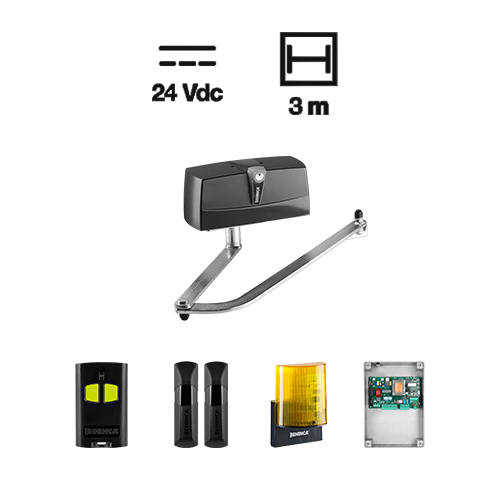

2x PR.45E24
24 Vdc self-locking drive for intensive use
1X BRAINY24

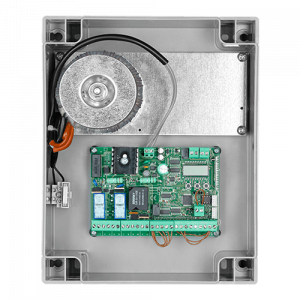

Control unit 24 Vdc with integrated receiver
2X DU.E2

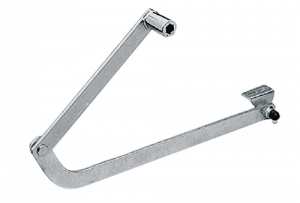

Single arm made of zinc steel
1X PUPILLA.T
Pair of photocells can be aligned in three positions, power supply 14÷30 Vac / 12÷30 Vdc | Close mounting of 2 pairs is possible without synchronization
1X LAMPY
Flashing light 12 ÷ 255 Vac / 14 ÷ 255 Vdc with integrated antenna
1X TO.GO2VA
Hand-held transmitter with 2 channels, 433.92 MHz, with Advanced Rolling Code and Rolling Code
| Supply voltage motor | 24 Vdc |
| Max. Power consumption | 9 A |
| Torque | 320 Nm |
| Opening hours | 9″ |
| ED | Intensive operation |
| Protection class | IP44 |
| Integrated control | Nope |
| Encoder | Nope |
| Operating temperature | -20°C /+50°C |
| Lubrication | BOLD |
| Max. Wing length | 3,0 m |
| Weight | 9 kg |
| Quantity per pallet | 42 |
| Weight of the set | 34 kg |
| Number of sets per pallet | 12 |
APPLICATION
1 or 2 operators for swing gates, opposing sliding gates and industrial folding gates with a maximum of 2 leaves
SUPPLY OF THE CONTROL UNIT
230 Vac – 50/60 Hz
SUPPLY OF THE MOTOR
24 Vdc / 120 W + 120 W
MAIN FUNCTIONS
Integrated LCD display | Integrated 433.92 MHz radio receiver with 64 codes and 3 radio codings (Advanced Rolling Code, Rolling Code, Fixed Code) | Removable terminal strips | Inputs for limit switches (separately for each motor) | Inputs for opening, closing and pedestrian door | Inputs for photocell activation on opening-closing and only on closing | Input for safety contact strip N.C. or 8K2 | Output for 12 Vdc electric lock | Output for “gate open” or photocell test indicator light, for second radio channel and photocell test | Output for flashing light connection | Autoset operating parameters | Electronic torque adjustment (separate for each motor) | Anti-crushing protection with force cut-off | Electronic slowdowns on opening and closing (separate for each motor) | Possibility of parameter configuration and remote control management via the Advantouch system | Number of movements | Access password for programming | Maintenance message
APPLICATION
1 or 2 operators for swing gates, opposing sliding gates and industrial folding gates with a maximum of 2 leaves
SUPPLY OF THE CONTROL UNIT
115 or 230 Vac (selectable) 50/60Hz
SUPPLY OF THE MOTOR
24 Vdc / 240 W + 240 W
MAIN FUNCTIONS
Integrated LCD display | Integrated 433.92 MHz radio receiver 64 codes and 3 codings (Advanced Rolling Code, Rolling Code, Fixed Code) | Removable terminal blocks | Separate limit switch inputs for each motor | Inputs for open, close, step and pedestrian | Separate inputs for photocell for open-close and close only | Stop input | Input for N.C. or 8K2 safety contact strip | Input for hydraulic motor encoder 24 Vdc | Output for 12 Vdc electric lock | 2 outputs configurable as warning light for open door, second radio channel, auxiliary light, zone light or light barrier test, flashing light, alarm for open door, Alarm NC inputs | Output for connection of flashing light | Autoset of operating parameters | Separate electronic torque setting for each motor | Separate electronic speed control for each motor | Crush protection with force cut-off and encoder management | Opening and closing slowdowns separately for each motor | Prepared for connection to KNX via X.BE (optional) | Prepared for control, configuration, diagnostics and firmware update via the BeUP app, via the PRO.UP accessory | Possibility of parameter configuration and management of hand-held transmitters with the Advantouch system | Number of maneuvers | Access password for programming | Maintenance message | Integrated battery charger
