SAM.E24

SAM.E24

Categories ,

24 Vdc self-locking drive for intensive use with integrated control unit and receiver

Request information

24 Vdc | Intensive operation

24 Vdc self-locking actuator for intensive use with integrated control unit and receiver | Standby consumption in accordance with European Regulation (EU) 2023/826 | The control unit, accessible from above, is positioned on a removable bracket that facilitates installation work and allows quick access to the mechanical stops | 100 ÷ 250 Vac switching power supply for low power consumption and long operator life | Ideal for swing gates characterized by large uprights with leaf hinge depths of up to 280 mm (only 170 mm wide) | The encoder device offers maximum safety and precision in the gate movement phases | STC System device allows the torque output to be controlled according to the position of the gate, This guarantees maximum safety | Robust articulated arm with closing lock that allows the stop position to be easily determined during installation | Motor bracket with cable gland | Guaranteed operation even in the event of a power failure thanks to batteries that can be perfectly integrated into the motor | Anti-crushing system with force cut-off | Designed for connection of the X.BE accessories for the integration of KNX home automation systems and for programming via the BeUP app and the PRO.UP interface | Possibility of adjustable wire release, which enables opening from the outside in the event of a power failure

Delivery without arm

Drive sets

Mjk0 73d08835f3c3b145a91fa35c951f2907

1x SAM.E24

24 Vdc self-locking drive for intensive use with integrated control unit and receiver

Mjk0 73d08835f3c3b145a91fa35c951f2907

1X SAM.24

24 Vdc self-locking drive for intensive use

Mjk4 5053774158ed9242858d717076bce783

2X SAM.BA

Articulated arm

02a0da79031c8b1162423017f0ecf4a2 1

1X PUPILLA.T

Pair of photocells can be aligned in three positions, power supply 14÷30 Vac / 12÷30 Vdc | Close mounting of 2 pairs is possible without synchronization

914e98a6e7a0e70ee06b6dfa558ea0d2 1

1X LAMPY

Flashing light 12 ÷ 255 Vac / 14 ÷ 255 Vdc with integrated antenna

cffa7339d47cfd45314827e58eef977c 1

1X TO.GO2VA

Hand-held transmitter with 2 channels, 433.92 MHz, with Advanced Rolling Code and Rolling Code

Technical data

Use Private use
Mains supply 100 ÷ 250 Vac (50-60Hz)
Supply voltage motor 24 Vdc
Max. Power consumption 3,5 ÷ 1,9 A
Torque 220 Nm
Opening hours 14″ (incl. deceleration)
ED Intensive operation
Protection class IP44
Integrated control Yes
Encoder Yes
Mechanical stop when opening adjustable
Mechanical stop when closing optional
Operating temperature -20°C /+50°C
Lubrication BOLD
Max. Wing length 2,5 m
Weight 7.9 kg
Quantity per pallet 45
Weight of the set 17 kg
Number of sets per pallet 15

Controls

Mjk3 a9ce93c9a1861142e92697cf26d6f132

CP.SAM

APPLICATION

2 Operators for swing gates series SAM

SUPPLY OF THE CONTROL UNIT

230 Vac – 50/60 Hz

SUPPLY OF THE MOTOR

24 Vdc / 5.5 A + 5.5 A

MAIN FUNCTIONS

Built-in LCD display | Built-in 433.92 MHz radio receiver with 512 codes and ARC radio coding | Removable terminal blocks | Automatic, semi-automatic and dead man operating logic | Separate encoder inputs for each motor | Inputs for open, close, step, pedestrian and stop | Input for photocells active on open-close and photocells active on close only | Input for safety contact strip N.C. or 8K2 | Output for electric lock 12/24 Vdc | Two outputs configurable as indicator light for open door, auxiliary light, zone light, second radio channel, light barrier test, flashing light, alarm contact | Autoset operating parameters | Separate electronic torque adjustment for each motor | Crush protection with force cut-off and encoder management | Electronic torque adjustment with automatic calculation for each travel point (STC SYSTEM) | Separately adjustable decelerations for each motor | Possibility of encoder or timed operation (managed via virtual encoder) also independently between the two motors | Integrated ESA+ for energy saving | Prepared for KNX connection via X.BE (optional) | Prepared for management configuration, diagnostics and firmware update via the BeUP app, via the PRO.UP accessory | Possibility of configuring parameters and managing handheld transmitters with the Advantouch system | Number of maneuvers | Access and programming password | Maintenance warning | Integrated battery charger, compatible with 2 batteries 12V 1.2Ah | Standby consumption in accordance with European Regulation (EU) 2023/826

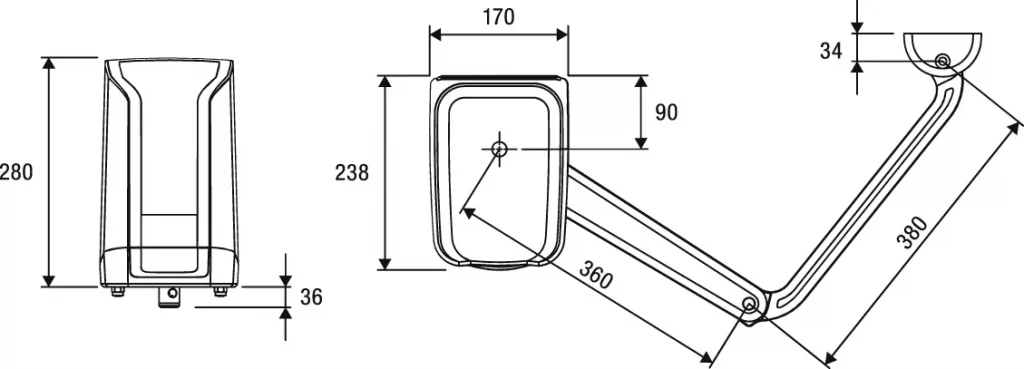

Technical diagram

SAM.E24 drawing
