24 Vdc | uso intensivo

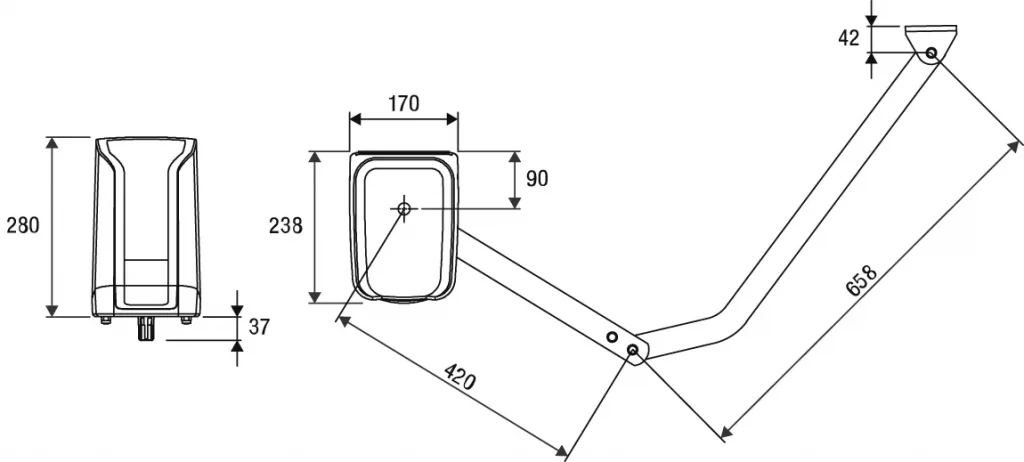

Irreversible 24 Vdc drive for intensive use, available with or without control unit | Standby consumption in accordance with European Regulation (EU) 2023/826 | The control unit, accessible from above, is positioned on a removable bracket that facilitates installation work and allows quick access to the mechanical stops | 100 ÷ 250 Vac switching power supply for low power consumption and long operator life | Ideal for swing gates characterized by large uprights with leaf hinge depths of up to 280 mm (only 170 mm wide) | The encoder device offers maximum safety and precision in the gate movement phases | STC System device allows the torque output to be controlled according to the position of the gate, guaranteeing maximum safety, The STC system device allows the torque output to be controlled according to the position of the gate, guaranteeing maximum safety | Robust articulated arm with closing lock that allows the stop position to be easily determined during installation | The grooved output shaft ensures maximum stability and resistance | Motor support with cable gland | Guaranteed operation even in the event of a power failure thanks to batteries that can be perfectly integrated into the motor | Anti-crushing system with force cut-off | Prepared for connection of accessories X.BE (KNX), Q.BE (MQTT) and PRO.UP interface | Possibility of adjustable wire release, which enables opening from the outside in the event of a power failure
Delivery without arm
Drive sets
1x SAM.E24 PLUS
24 Vdc self-locking drive for intensive use with integrated control unit and receiver
1X SAM.24 PLUS
24 Vdc self-locking drive for intensive use
2X SAM.BA PLUS
Single arm made of galvanized steel
1X PUPILLA.T
Pair of photocells can be aligned in three positions, power supply 14÷30 Vac / 12÷30 Vdc | Close mounting of 2 pairs is possible without synchronization
1X STAR
Flashing light 12 ÷ 255 Vac / 14 ÷ 255 Vdc with integrated antenna
1X TO.GO2VA
Hand-held transmitter with 2 channels, 433.92 MHz, with Advanced Rolling Code and Rolling Code
Controls
CP.SAM
APPLICATION
2 Operators for swing gates series SAM
SUPPLY OF THE CONTROL UNIT
230 Vac – 50/60 Hz
SUPPLY OF THE MOTOR
24 Vdc / 5.5 A + 5.5 A
MAIN FUNCTIONS
Built-in LCD display | Built-in 433.92 MHz radio receiver with 512 codes and ARC radio coding | Removable terminal blocks | Automatic, semi-automatic and dead man operating logic | Separate encoder inputs for each motor | Inputs for open, close, step, pedestrian and stop | Input for photocells active on open-close and photocells active on close only | Input for safety contact strip N.C. or 8K2 | Output for electric lock 12/24 Vdc | Two outputs configurable as indicator light for open door, auxiliary light, zone light, second radio channel, light barrier test, flashing light, alarm contact | Autoset operating parameters | Separate electronic torque adjustment for each motor | Crush protection with force cut-off and encoder management | Electronic torque adjustment with automatic calculation for each travel point (STC SYSTEM) | Separately adjustable decelerations for each motor | Possibility of encoder or timed operation (managed via virtual encoder) also independently between the two motors | Integrated ESA+ for energy saving | Prepared for KNX connection via X.BE (optional) | Prepared for management configuration, diagnostics and firmware update via the BeUP app, via the PRO.UP accessory | Possibility of configuring parameters and managing handheld transmitters with the Advantouch system | Number of maneuvers | Access and programming password | Maintenance warning | Integrated battery charger, compatible with 2 batteries 12V 1.2Ah | Standby consumption in accordance with European Regulation (EU) 2023/826
