Electronic module for adapting new or existing systems to the European Standby Regulation 2023/826 Ecodesign, valid from May 2025 | The system is applicable to all automation systems in the residential sector | Power consumption of the module in standby mode below 0.5 W | Equipped with 2 signal inputs and 2 signal outputs for the connection and replication of wired commands, 1 power output for the connection of the load to be controlled, 1 input for status feedback | Integrated radio receiver, 120 storable codes with codings: ARC, rolling code HCS, fixed code | The module can only be used with control centers with 230 Vac power supply | Control with presence detection or operation with batteries is not possible

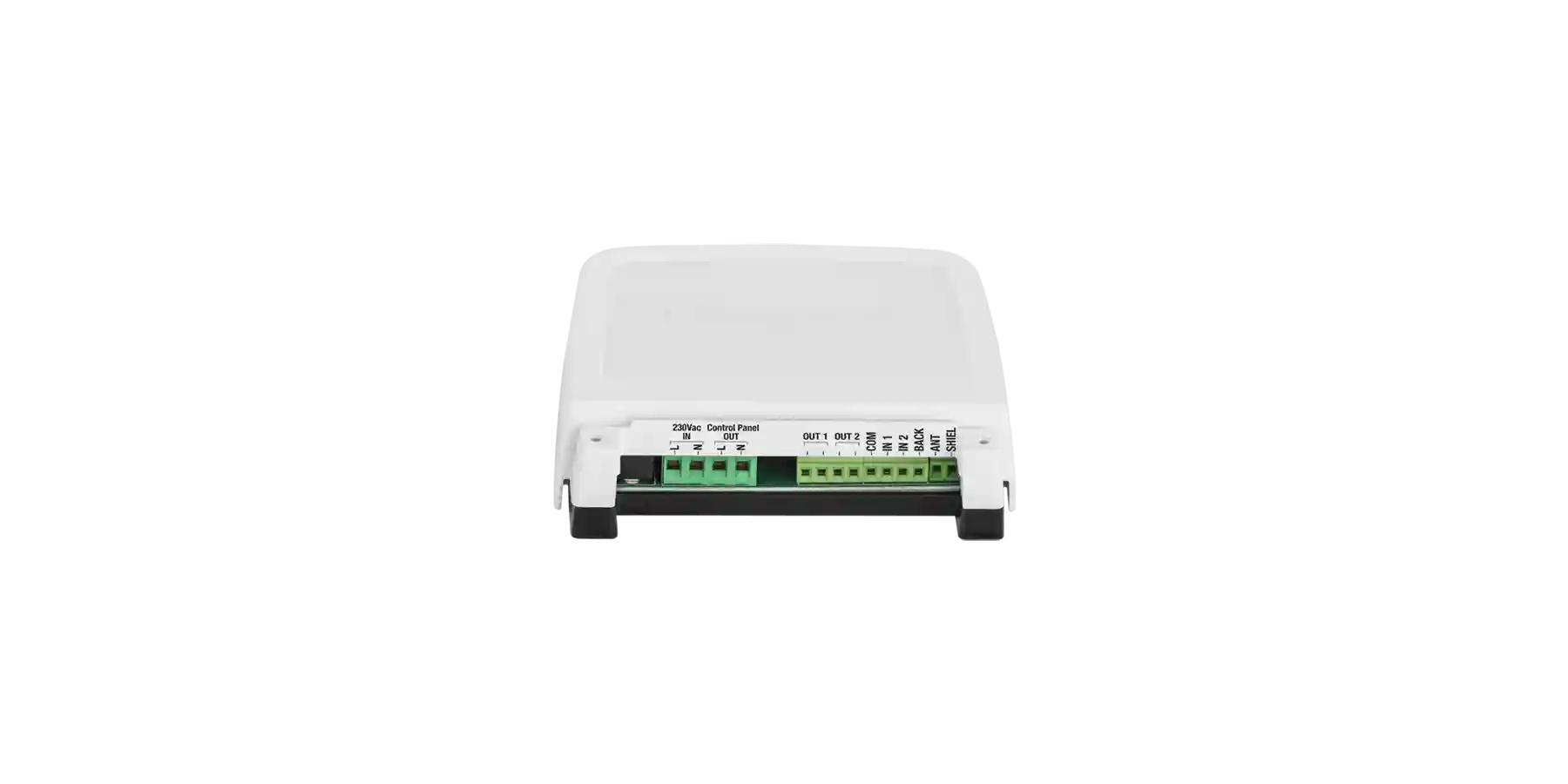

SE.MODULE
Universal module that enables standby consumption in accordance with European Regulation (EU) 2023/826
Technical data
| Mains supply | 100 ÷ 240 Vac – 50/60 Hz |
| Protection class | IP40 |
| Channels | 2 |
| Frequency | 433.92 MHz |
| Advanced Rolling Code (ARC) | Yes |
| Rolling Code | Yes |
| Fixed code | Yes |
| Number of storable codes | 120 |

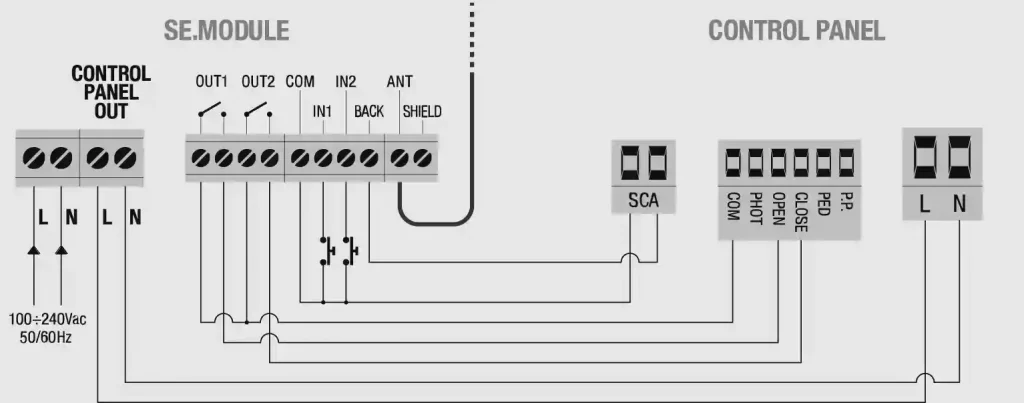

Terminal diagram
