SPARTACUS 275-600 AL/I

– Cylinder with integrated LED lights, the control unit can operate 2 bollards simultaneously

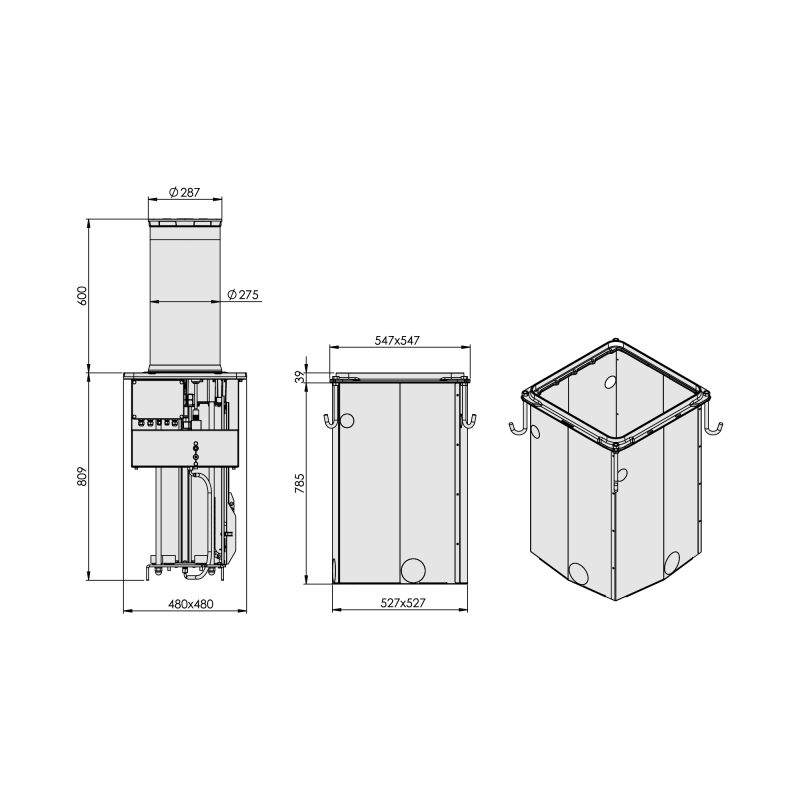

– Foundation box in accordance with EN124 (40T) regulation and independent pump for each bollard, positioned laterally to avoid damage in the event of an impact and to facilitate maintenance
– In the event of a power failure, the bollard remains in the raised position (manual unlocking)
– Heating for the foundation box, acoustic warning signal and pressure monitor for obstacle detection available as accessories

Specifiche

Product features: SPARTACUS 275-600 AL/I

Cylinder height	600 mm
Cylinder diameter	275 mm
Exit time	3 s
Running-in time	3 s
Power supply	230 Vac – 50/60 Hz (versions with special voltage on request)
Power consumption	550W
Hydraulic motor	Integrated
Load class in accordance with EN 124	D400 (40 tons)
Operation in the event of a power failure	Manual unlocking

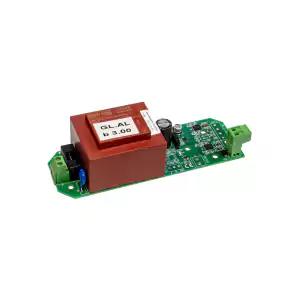

Automatic reduction in the event of a power failure	Yes (with GL.AL)
Obstacle detection when extending	Optional (GL.PRES)
Capacitor	25 μF
Daily cycles	3.500
MCBF	3.000.000
Impact resistance	40.000 J
Breaking strength	250.000 J
Operating temperature	-40°C ÷ +60°C [GL.HEAT required for temperatures lower than -10°C]
Protection class	IP67
Weight	99 kg

Documentation

Documentation: SPARTACUS 275-600 AL/I

Product Description | SPARTACUS

Controls

Power supply 230 Vac 50/60 Hz | For operating 1 or 2 bollards of the SPARTACUS series | Integrated 433.92 MHz radio receiver with 64 codes and 3 radio codes (Advanced Rolling Code, Rolling Code, Fixed Code) | Removable terminal blocks | Programming of operating parameters and logics via integrated LCD display | Automatic function logic, automatic, semi-automatic or with dead man function | Access password for programming | With inputs for step-by-step commands (PP) separately for each bollard and inputs for global ALL UP and ALL DOWN commands for the exit and entry of both bollards | Integrated electronic board for managing the warning lights and audible warning signal | Separate limit switch inputs for each motor | Inputs for operating loops and safety devices (GL.PRES) | 2 configurable outputs as warning light for bollard status | IP54 protection class

Accessories

	CA275/600 Foundation box.
	GL.TOP275 Cover for box CA275/600.
	GL.BUZZ Acoustic signaling device.
	GL.CABLE12 Cable FG12 12×1.5 mmq.
	GL.CABLE16 Cable FG16 16×1.5 mmq.
	GL.HEAT Heater for hydraulic bollard, activated at below 5 °C.
	GL.PKEY Personalized unlocking key.
	GL.PRES Pressure monitor for obstacle detection.
