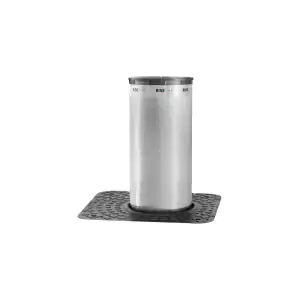

– Cylinder with integrated LED lights, the control unit can operate 2 bollards simultaneously

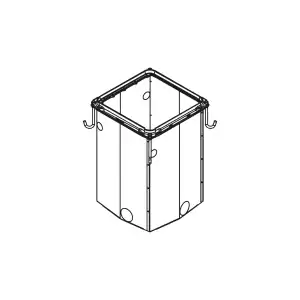

– Foundation box in accordance with EN124 (40T) regulation and independent pump for each bollard, positioned laterally to avoid damage in the event of an impact and to facilitate maintenance

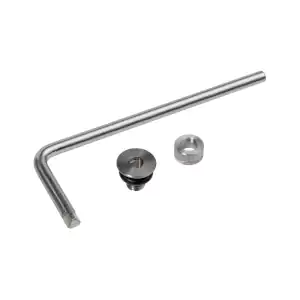

– In the event of a power failure, the bollard remains in the raised position (manual unlocking)

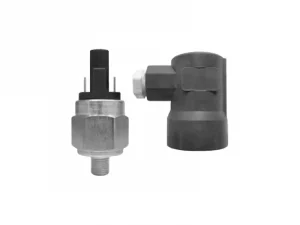

– Heating for the foundation box, acoustic warning signal and pressure monitor for obstacle detection available as accessories
Controls
MAX.CP BL
Power supply 230 Vac 50/60 Hz | For operating 1 or 2 bollards of the SPARTACUS series | Integrated 433.92 MHz radio receiver with 64 codes and 3 radio codes (Advanced Rolling Code, Rolling Code, Fixed Code) | Removable terminal blocks | Programming of operating parameters and logics via integrated LCD display | Automatic function logic, automatic, semi-automatic or with dead man function | Access password for programming | With inputs for step-by-step commands (PP) separately for each bollard and inputs for global ALL UP and ALL DOWN commands for the exit and entry of both bollards | Integrated electronic board for managing the warning lights and audible warning signal | Separate limit switch inputs for each motor | Inputs for operating loops and safety devices (GL.PRES) | 2 configurable outputs as warning light for bollard status | IP54 protection class
CP.BL

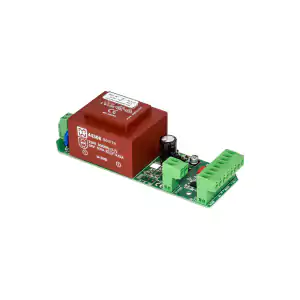

Circuit board for buzzer management and LED
