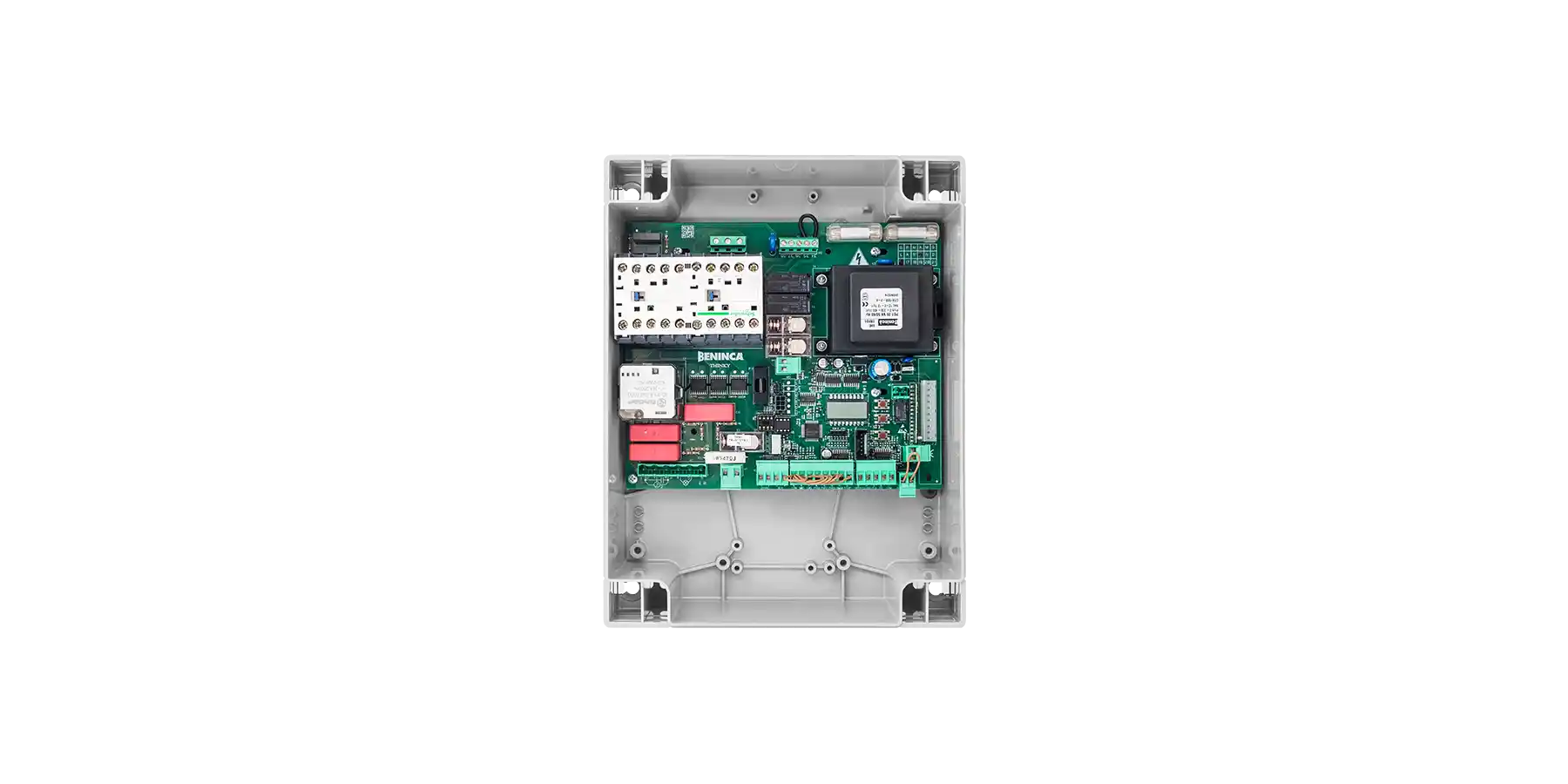

THINKY

APPLICATION

1 operator for sectional and roller doors, folding doors with more than two leaves, unbalanced and industrial roller grilles

SUPPLY OF THE CONTROL UNIT

230 Vac single-phase or 400 Vac three-phase

SUPPLY OF THE MOTOR

230 Vac / 800 W or 400 Vac / 2200 W

MAIN FUNCTIONS

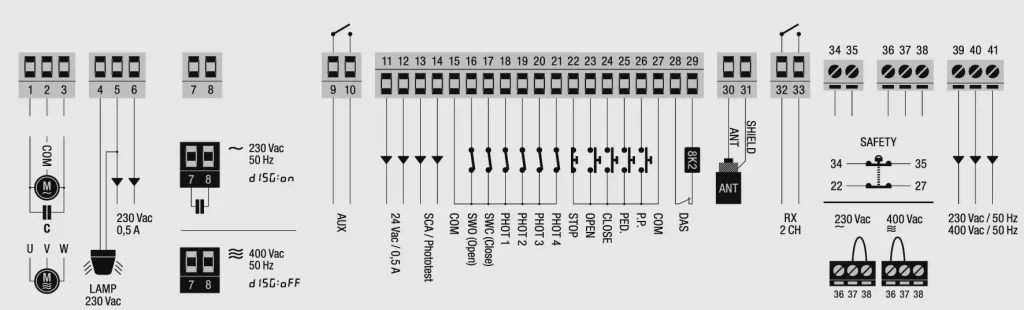

Integrated LCD display | Integrated 433.92 MHz radio receiver with 64 codes and ARC radio coding as well as preparation for radio receiver connection via plug connector | Preparation for connection of an absolute encoder and quick wiring (VN “ESW” motors) | Autoset function parameters for motors with absolute encoder (VN “ESW”) | Removable terminal strips | Automatic function logic, semi-automatic and with dead man function | Inputs for motor limit switches | Inputs for opening, closing, step operation, pedestrian door and stop | Inputs for 4 pairs of photocells (activation can be set for both opening and closing or only for closing) and PHOTO TEST logic | Input for N.C. or 8K2 safety contact strip | Input for safety sensor | Configurable output for “gate open” indicator light, second radio channel, auxiliary light and area light | Configurable output for “gate open” indicator light or photocell test | Output for flashing light connection | Phase failure and overcurrent protection | Management of parameters stored in the electronic control unit possible via Advantouch system | Number of movements | Access password for programming | Maintenance message
