230 Vac

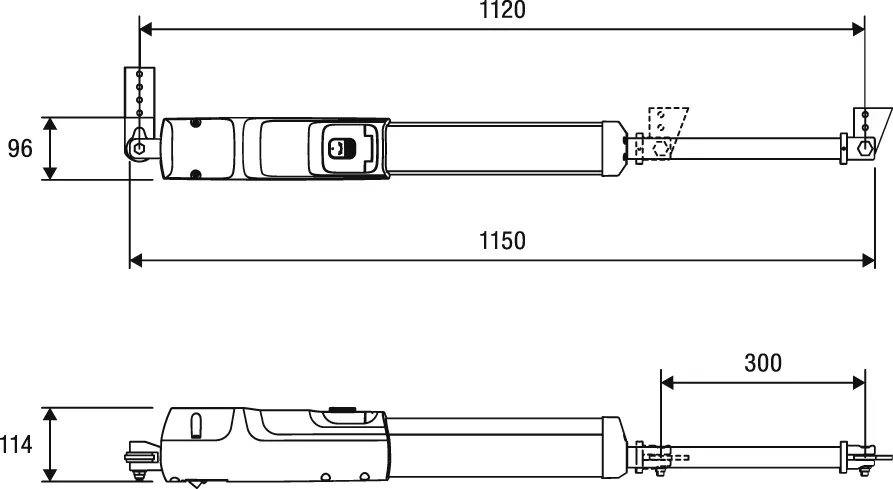

230 Vac self-locking electromechanical operator | Ideal for automating any type of swing gate thanks to its small footprint (only 96 mm wide) and weld-on fixing brackets | The 45° inclination of the cable reduces the ground clearance to a minimum | The rear and front brackets aligned on the same axis allow a better distribution of the loads, optimizing the life of the operator, which optimizes the service life of the drive | Suitable for dusty or sandy places and places with aggressive weather conditions thanks to the spindle protected by a scraper ring and stainless steel rod | Unlocking from above with easy access
Controls
BRAINY
APPLICATION
1 to 2 operators for swing gates, opposing sliding gates, hydraulic operators and industrial folding gates
SUPPLY OF THE CONTROL UNIT
230 Vac – 50/60 Hz
SUPPLY OF THE MOTOR
230 Vac / 600 W + 600 W
MAIN FUNCTIONS
Integrated LCD display | Integrated 433.92 MHz radio receiver with 64 codes and 3 radio codings (advanced rolling code, rolling code, fixed code) | Removable terminal blocks | Automatic, semi-automatic or dead man function logic | Encoder input for obstacle detection | Separate limit switch inputs for each motor | Inputs for opening, closing, pedestrian door, step mode, stop | Separate inputs for photocell active on open-close and photocell only active on close | Input for safety contact strip N.C. or 8K2 | Output for electric lock 230 Vac and 12 Vac/dc | Configurable outputs such as “door open” indicator light, auxiliary light, second radio channel and photocell test | Output for flashing light connection | Autoset for operating parameters (motors with encoder) | Electronic setting of torque (separately for each motor) and operating times | Adjustable slowdown | Possibility of parameter configuration and hand transmitter management via the Advantouch system | Number of movements | Access password for programming | Maintenance message
