230 Vac operator with encoder, manual chain hoist and 1/20 reduction ratio | Plastic housing that facilitates the wiring of the operator thanks to the front arrangement and the possibility of cable entry in three different positions | This device is equipped with the absolute encoder that allows the limit switch positions for opening and closing the gate to be set directly in the control unit | Quick wiring using connectors for simple and quick installation | Two accessories for chain gears with reduction ratio 1:1 (eccentric motor installation) or 1:1.8 (torque or speed multiplier) as an option | Maximum safety even in the quick release phase thanks to a microswitch that disconnects the motor supply voltage | Reductions in oil bath with hardened steel screw and bronze gears for maximum performance, reliability and smooth running | Also available in the version as a set with motor, 5 m cable and THINKY control unit
Drive sets
1X VN.M20 ESW

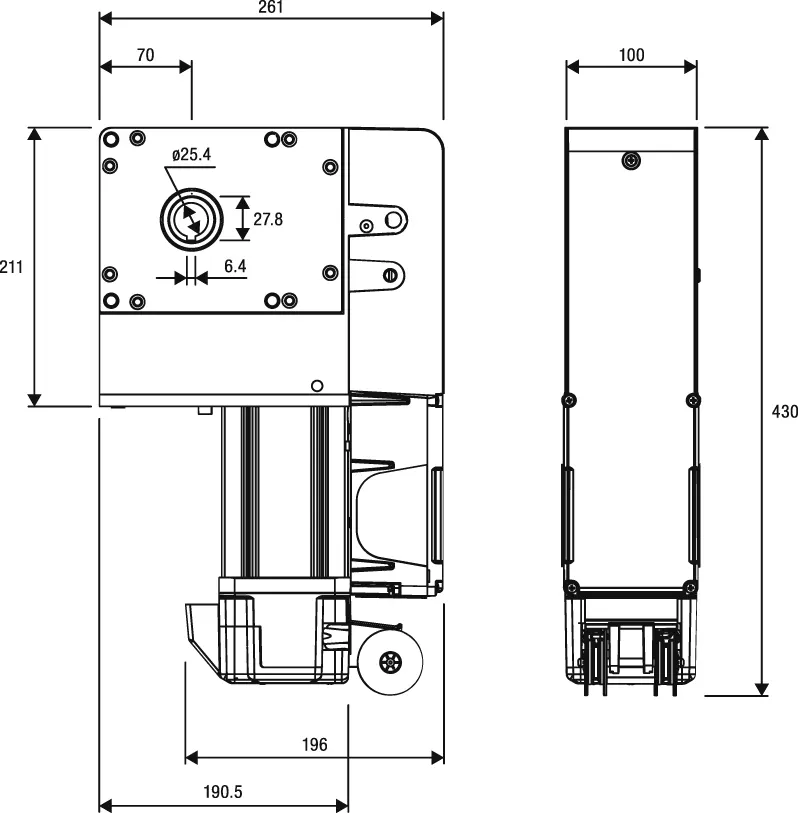

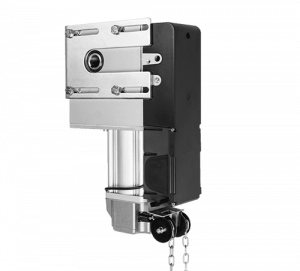

230 Vac drive with encoder, manual chain hoist and reduction ratio 1/20
1X THINKY

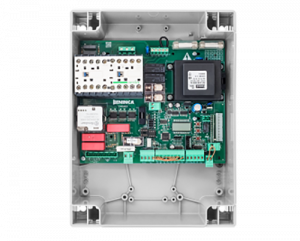

Control unit 230/400 Vac with integrated receiver
1X CABLE VN.ESW 5

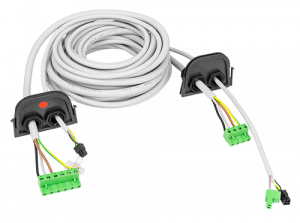

Cable with quick wiring using plug connectors
Controls
THINKY
APPLICATION
1 operator for sectional and roller doors, folding doors with more than two leaves, unbalanced and industrial roller grilles
SUPPLY OF THE CONTROL UNIT
230 Vac single-phase or 400 Vac three-phase
SUPPLY OF THE MOTOR
230 Vac / 800 W or 400 Vac / 2200 W
MAIN FUNCTIONS
Integrated LCD display | Integrated 433.92 MHz radio receiver with 64 codes and ARC radio coding as well as preparation for radio receiver connection via plug connector | Preparation for connection of an absolute encoder and quick wiring (VN “ESW” motors) | Autoset function parameters for motors with absolute encoder (VN “ESW”) | Removable terminal strips | Automatic function logic, semi-automatic and with dead man function | Inputs for motor limit switches | Inputs for opening, closing, step operation, pedestrian door and stop | Inputs for 4 pairs of photocells (activation can be set for both opening and closing or only for closing) and PHOTO TEST logic | Input for N.C. or 8K2 safety contact strip | Input for safety sensor | Configurable output for “gate open” indicator light, second radio channel, auxiliary light and area light | Configurable output for “gate open” indicator light or photocell test | Output for flashing light connection | Phase failure and overcurrent protection | Management of parameters stored in the electronic control unit possible via Advantouch system | Number of movements | Access password for programming | Maintenance message
