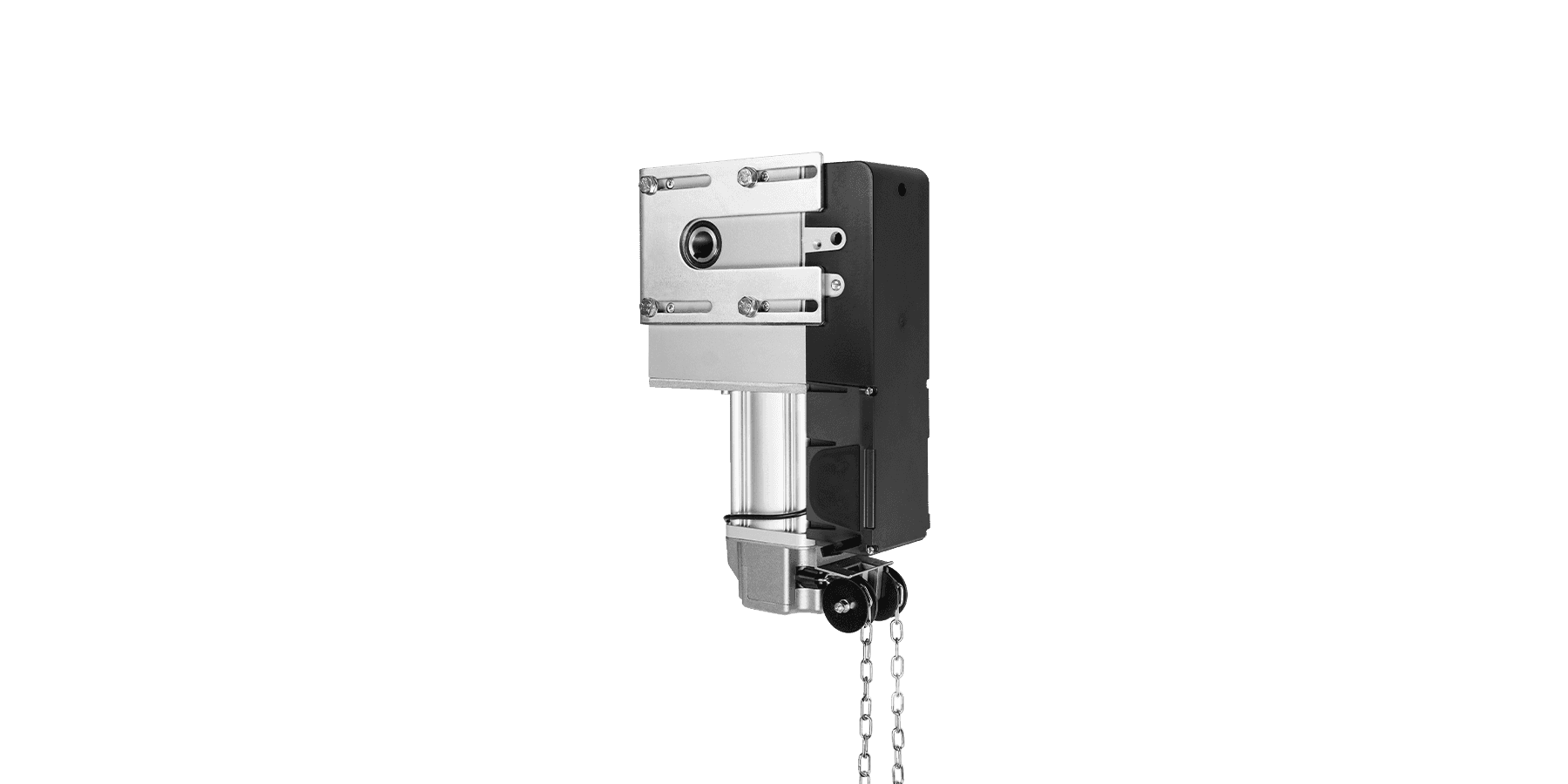

VN.M20 UP

VN.M20 UP

Categories ,

230 Vac drive with integrated control, manual chain hoist and reduction ratio 1/20

Request information

230 Vac

230 Vac operator with integrated control, manual chain hoist and 1/20 reduction ratio | Plastic housing that facilitates wiring of the operator thanks to the front arrangement and the possibility of cable entry in three different places | Equipped with control for the dead man function (UP.VN) and commands on very low safety voltage of 12 Vdc. Ideal for simple installations | Two accessories for chain gearboxes with reduction ratio 1:1 (off-center motor installation) or 1:1.8 (torque or speed multiplier) as an option | Maximum safety even in the quick release phase thanks to a microswitch that disconnects the motor supply voltage | Reductions in oil bath with hardened steel screw and bronze gearbox for maximum performance, maximum reliability and smooth running | 4 limit switches with micrometric adjustment

Technical data

Mains supply 230 Vac (50-60Hz)
Supply voltage motor 230 Vac
Max. Power consumption 3,3 A
Max. Torque 130 Nm
Max. Turns at the exit 18
Output speed 24 r.p.m.
Hole shaft output 1″ (25.4 mm)
Reduction ratio Limit switch 1/20
ED 30%
Protection class IP40
Integrated control Yes
Integrated receiver Nope
Encoder Nope
Operating temperature -20°C /+50°C
Lubrication OIL
Door surface 35 ㎡/max
Weight 15.6 kg
Quantity per pallet 24

Controls

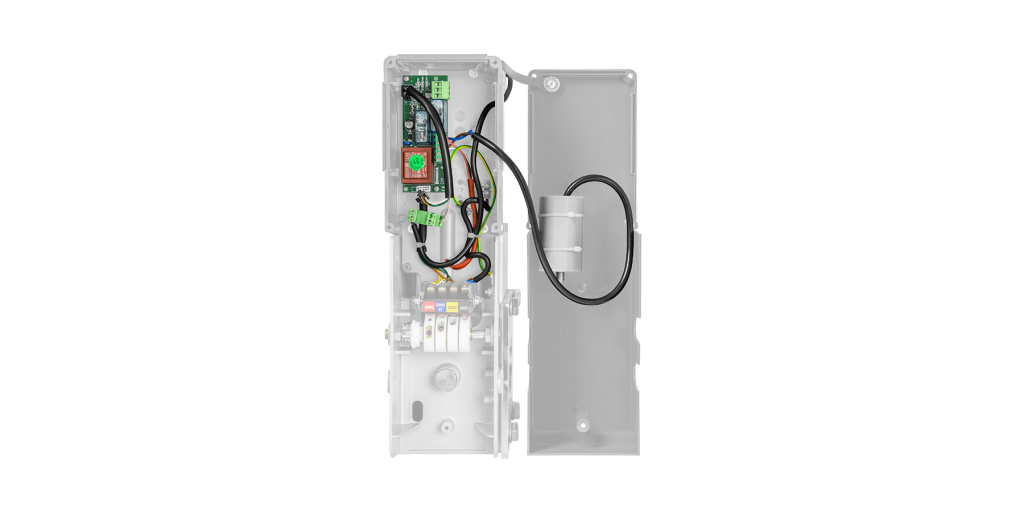

0c8686ac29caf139181e277a113644d5

UP.VN

APPLICATION

1 Operator for industrial doors series VN.M20 UP, VN.M40 UP, VN.S20 UP, VN.S40 UP

SUPPLY OF THE CONTROL UNIT

230 Vac – 50/60 Hz

SUPPLY OF THE MOTOR

230 Vac / 1500 W

MAIN FUNCTIONS

Only with dead man function | Removable terminal strips | Separate inputs for OPEN and CLOSE on very low safety voltage 12 Vdc | Input diagnostics via LED

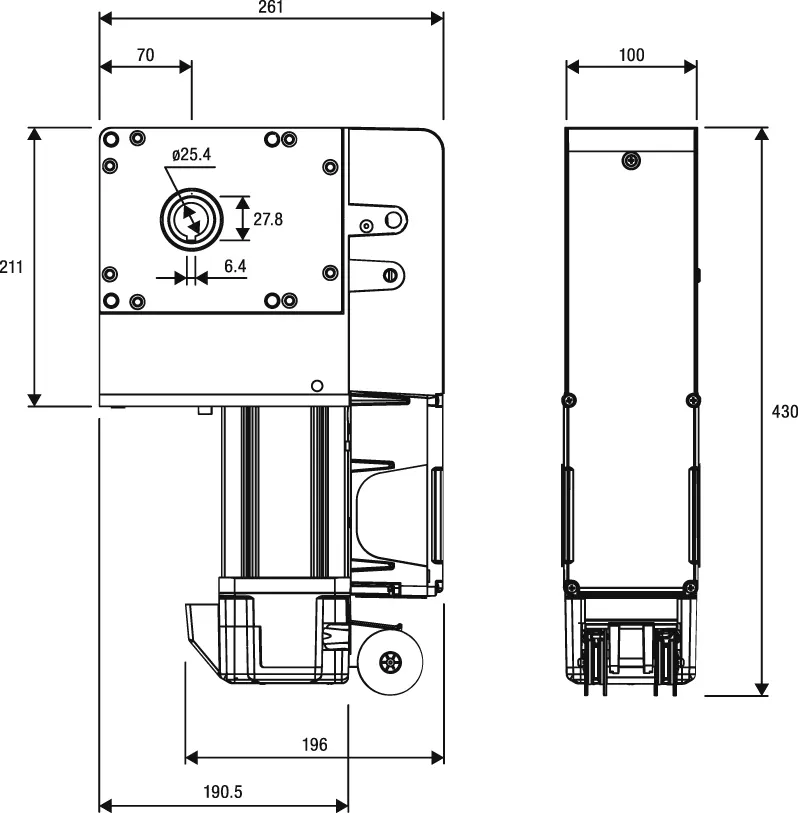

Technical diagram

VN.M20 UP
