230 Vac
230 Vac drive | integrated auxiliary light, limit switch and command buttons
Technical data
| Mains supply | 230 Vac (50-60Hz) |
| Supply voltage motor | 230 Vac |
| Max. Power consumption | 1,5 A |
| Torque | 350 Nm |
| Opening hours | 14″ |
| ED | 30% |
| Protection class | IP40 |
| Integrated control | Nope |
| Integrated receiver | Nope |
| Encoder | Nope |
| Operating temperature | -20°C /+50°C |
| Max. Door surface 1 motor (2 motors) | 11 ㎡ (15 ㎡) |
| Weight | 9.3 kg |
| Quantity per pallet | 50 |
Controls
LOGICA
APPLICATION
1 to 2 operators for overhead doors
SUPPLY OF THE CONTROL UNIT
230 Vac – 50/60 Hz
SUPPLY OF THE MOTOR
230 Vac / 300 W + 300 W
MAIN FUNCTIONS
Integrated LCD display | Integrated 433.92 MHz radio receiver with 64 codes and ARC radio coding | Removable terminal strips | Automatic, semi-automatic and dead man function logic | Encoder input for obstacle detection | Separate limit switch inputs for opening and closing a motor | Separate limit switch inputs for each motor | Inputs for step operation, closing and stop | Input for N.C. or 8K2 safety contact strip | Light barrier input programmable for activation on opening-closing or only on closing | Output configurable as warning light when door is open, second radio channel or photocell test | Output for flashing light connection | Output for auxiliary light 24 Vdc | Autoset operating parameters for ZED series motors with encoder | Electronic torque adjustment (4 levels) | Autoset operating parameters and deceleration | Adjustable deceleration | Possibility of parameter configuration and hand transmitter management via the Advantouch system | Number of movements | Access password for programming | Maintenance message

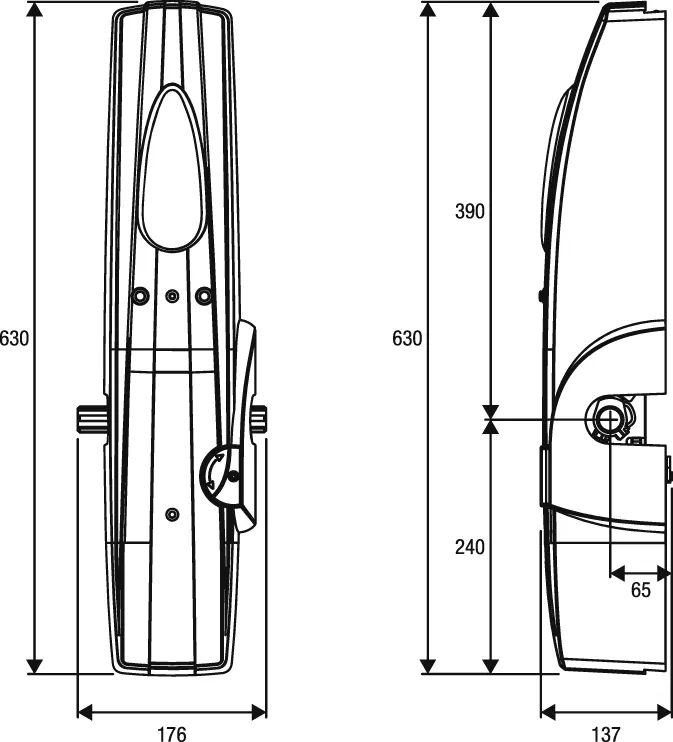

Technical diagram
